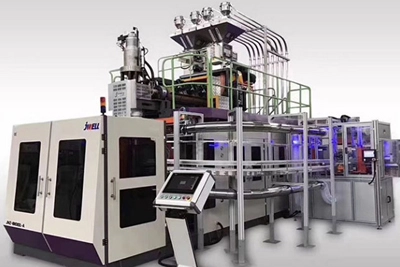

The 5 Ltr Blow Moulding Machine is designed to produce 1-5L different sizes of gear oil bottles, lubrication oil bottles, cooling water tanks, and more.
It offers optional features such as multi-layer co-extrusion and a view strip line system.
Based on the product size, the 5 ltr plastic blow moulding machine can select different cavities of the die head.
Depending on the materials used, there's an option for the JW-DB single station hydraulic screen-exchanger system.
In line with customers' needs, Jwell, a plastic extrusion factory in China, offers optional features such as auto-deflashing online, scrap conveying online, and finished product conveying online.
| Technical parameters | |||||
| Model | Unit | BM02D | BM05D | BM12D | BM20D |
| Max product volume | L | 2 | 5 | 12 | 20 |
| Dry cycle | Pc/h | 900*2 | 700*2 | 600*2 | 600*2 |
| Die head structure | Continuous type | ||||
| Main screw diameter | mm | 65 | 75 | 90 | 90 |
| Max plasticizing capacity (PE) | kg/h | 70 | 90 | 160 | 160 |
| Driving motor | Kw | 22 | 30 | 45 | 45 |
| Oil pump motor power | Kw | 7.5 | 11 | 15 | 15 |
| Clamping force | KN | 40 | 70 | 120 | 160 |
| Space between platen | mm | 138-368 | 150-510 | 240-640 | 280-680 |
| Platen size W*H | mm | 286*330 | 350*400 | 450*500 | 500*520 |
| Max. mould size | mm | 300*350 | 360*400 | 500*520 | 560*520 |
| Platen moving stroke | mm | 420 | 450/520 | 600/650 | 650 |
| Heating power of die head | Kw | 6 | 7.5 | 10 | 12.5 |
| Machine dimension L*W*H | m | 3.0*1.9*2.4 | 3.7*3.1*2.7 | 4.2*3.2*3.0 | 4.3*3.2*3.1 |
| Machine weight | T | 5 | 8.5 | 12 | 14 |
| Total power | Kw | 45 | 60 | 90 | 93 |
Note: Informations listed above are for reference only, the production line can be designed by customer's requirements.
The machine features a SIEMENS human-machine interface, which provides a visual display for easy setting, searching, changing, and storing of parameters. The control system has self-diagnostic capabilities, allowing malfunctions to be displayed on the screen. The B&R Austria human-machine interface and parison programmer can adjust up to 300 points. The parison control system uses a MOOG 100 points parison programmer and a specially designed separate hydraulic power package to control the cylinder's movement, ensuring high precision.
The blowpin system includes an up-blowing unit, which is used for the JWZ-BM Continuous type Blow Molding Machine. The electrical system comprises a SIEMENS CPU unit, a SIEMENS temperature-control unit, a SIEMENS digital-output unit, a SIEMENS analog-output unit, a MITSUBISHI CPU unit, an ABB inverter for speed control, and Schneider electric components.
This machine is designed to create 5 Ltr blow molding products. It offers a comprehensive solution that includes:
A view strip line
A take-out robot
Conveyors for both products and scrap
A crusher
A compressor
A chiller
A MOOG system
An accumulation head
A mold
A deflashing system
A leak tester
