Origin: China
Certifications: ISO, CE, UL, TUV
Electrical Components: Siemens, Schneider, OMRON, CELDUC, ABB, etc.
Mechanical Components: All manufactured by Jwell, with strict quality control
High quality
High capacity
Global after-sales support (300 engineers)
Over 30 years of manufacturing experience
Fully self-produced mechanical components, ensuring quality control
Cabinet: The main body features a solid welded steel structure, precision-machined using CNC technology. It boasts large thickness, high strength, strong wear resistance, no pollution, and a long service life. Equipped with a reliable buckle and fastening system, the design allows for easy lifting and pressure release. The upper box can be easily opened, and a hydraulic device facilitates convenient maintenance.
Spindle: Made from high-quality steel with dynamic and static balancing, ensuring stability and preventing deformation during operation. The latest "V" cutting technology is employed, and the rotor can be adapted to handle different quantities of materials. This ensures uniform cutting, energy efficiency, reduced emissions, and lower noise levels.
Customers can select from various knife roller structures based on their material-crushing needs, maximizing both capacity and quality while extending the equipment's lifespan.
The crusher box features three opening and closing methods: manual hinge, electric screw, and hydraulic cylinder, offering flexibility for different customer preferences.
Knife blades come in a variety of materials suitable for different applications, including Cr12MoV (D1), Cr12Mo1V (SKD11), Cr12Mo1V1 (D2), and DC53.
The feeding hopper, cutter, and filter can be easily separated for cleaning and maintenance.
Built with high-hardness steel templates, ensuring durability and stability.
High quality, capacity, and stability, backed by worldwide after-sales service and over 30 years of experience in development.
Model | Feed Size (mm) | Main Motor Power (KW) | Rotor Blade Quantity (pcs) | Rotor Effective Width (mm) | Output (kg/h) |
DYPS-Z 800 | 800x800 | 37-75 | 6/10 | 400 | 600 |
DYPS-Z 1000 | 1000x1000 | 55-110 | 10/14 | 700 | 800 |
DYPS-Z 1200 | 1200x1000 | 90-132 | 10/14/18 | 800 | 1000 |
DYPS-Z 1500 | 1500x1000 | 110-200 | 14/18 | 1000 | 1200 |

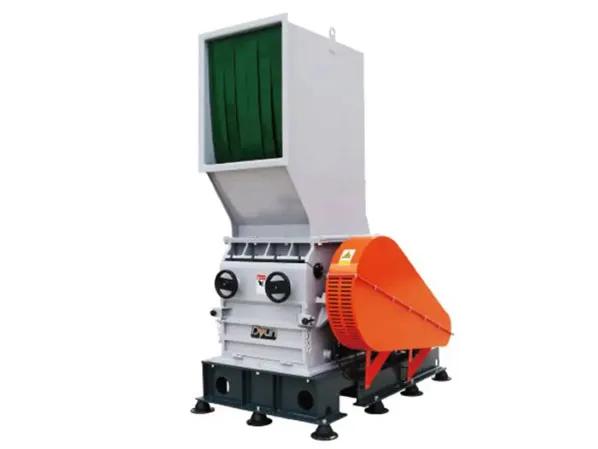

The DYPS-Z series heavy crusher is specifically designed for tough recycling tasks, capable of processing materials that are difficult to crush, with thicknesses ranging from 3 to 30 mm.
