Origin: China
Certifications: ISO, CE, UL, TUV
Electrical Components: Siemens, Schneider, Omron, Celduc, ABB, etc.
Mechanical Components: Manufactured entirely by Jwell, ensuring full quality control.
A range of solid and liquid additives as well as high-precision feeding of basic materials are guaranteed by an automatic gravimetric feeding system. Low-temperature extrusion technology to guarantee sufficient mixing in the plasticizing stable to avoid cross-linking of additives. A good answer to roller adhesion is provided by the unique architecture of the casting process. An expert online tempering tool to reduce internal stress. A tension control system makes sure that the flexible sheets move smoothly while being cooled, pulled, and wound. Real-time feedback on the production quality of EVA and POE solar film can be obtained through the online thickness measuring and defect inspection system.
Performance characteristics of EVA POE Solar Film Extrusion Line:
1. The China Jwell EVA film extrusion line uses single screw extrusion for POE and EVA. The technical issues of EVA/POE plasticization and non-crosslinking are resolved by the screw and barrel constant temperature circulating water cooling system.
2. The roller body uses double-sided embossing to address the technical challenge of film adhering to the roller.
3. To ensure smooth film operation, adequate molding, and a shrinkage rate of less than 3%, the cooling section uses a cooling roller and a stress-relieving cooling bed.
4. To achieve man-machine interaction operation, the entire EVA film extrusion process uses PLC automatic control.
5. To guarantee the product qualification rate, Jwell, an EVA film extrusion line manufacturer, has an online quality monitoring system.
6. The machine's line speed can reach 18 meters per minute thanks to a patented design micro tension winder.
Model | Extruder type | Products thickness(mm) | Max. output |
Single extrusion | JWS160 | 0.2-1.0 | 300-450 |
Co-extrusion | JWS160+WS180 | 0.2-1.0 | 750-850 |
Co-extrusion | JWS180+WS180 | 0.2-1.0 | 800-1000 |
Co-extrusion | JWS180+WS200 | 0.2-1.0 | 900-1100 |

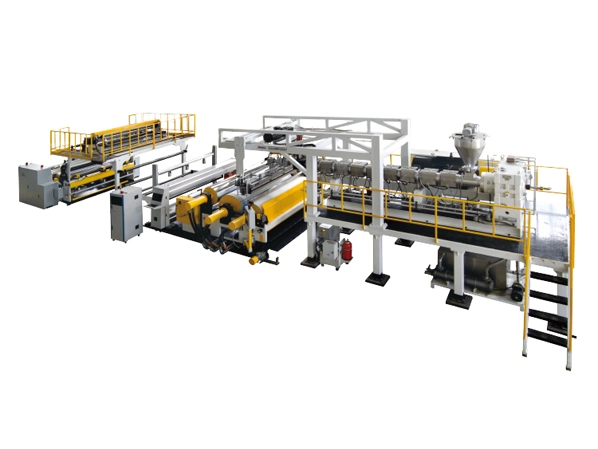

Introduction of PVB Glass Adhesive Film Extrusion Line:
PVB glass film is frequently used for color glass, photovoltaic glass, automobile laminated glass, bulletproof glass, and soundproof glass, among other applications. It has outstanding UV protection, sound insulation, light management, heat preservation, heat insulation, shock resistance, and other qualities in addition to its safety performance. It is the perfect composite material for safety glass.
Model | Products width(mm) | Design max capacity (kg/h) |
JWS150 | 2000-2600 | 400-500 |
JWE95 | 2000-2800 | 450-600 |
JWE120 | 2400-3600 | 1000-1200 |
JWE135 | 2400-3800 | 1200-1500 |
JWE95+JWE65 | 2000-3200 | 600-700 |
Ionic film SGP has a bearing capacity that is twice that of PVB laminated glass, a shear mode that is more than fifty times greater than PVB, and a rip strength that is five times greater than PVB. SGP laminated glass bends just 1/4 as much as PVB laminated glass under the same load and thickness. The performance of laminated glass made using SGP film is better than that of laminated glass made with PVB.
Model | Products width(mm) | Products thickness (mm) | Design max capacity (kg/h) |
JWE85 | 1400-2300 | 0.76-2.28 | 400-500 |
JWE95 | 2400-3800 | 0.76-2.28 | 500-600 |
EVA is the primary raw material used to make EVA film, which is then fully combined, heated by production and processing machinery, cast, and extruded. The cured EVA possesses flexibility and is resistant to changes in the atmosphere. It can increase the transmittance of the glass after bonding with it, contribute to increasing the transmittance, and increase the output of the solar cell module. As a result, it is the perfect material for packaging glass and solar cell modules.
PVB/SGP resin and plasticizer combine to form PVB/SGP/EVA film, a thermoplastic. Interlayering building glass, automotive glass, solar photovoltaic glass, bulletproof glass, soundproof glass, etc. is a common application for it. For more than 70 years, construction wall glass has been made with this high-safety, soundproof, ultraviolet-proof, multicolored, and ultra-transparent material. Additionally, it has solar photovoltaic and optical application value.
The end product will have a thickness of 0.38–1.52 mm and a width of 500–3400 mm. There are two types of production methods: roller forming and water cooling forming. Transparent, color strip, and full color film are optional.
Automobile window glass, ceiling glass, structural glass buildings, glass plank roads, high-rise outside walls, glass curtain walls, etc. are all common applications for PVB and SGP film.
