Jwell's TPU film production line comprises:
The TPU tape casting composite film production line, TPU invisible car clothing production line, TPU high and low temperature/high elastic film coextrusion production line, and TPU film production line/hot melt film production line.

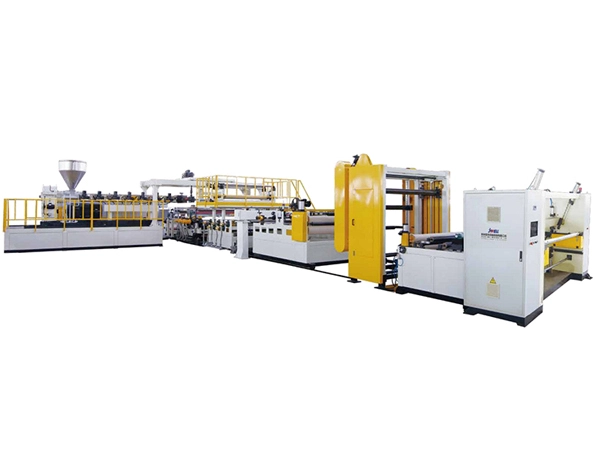

The TPU film extrusion line uses a one-step tape casting compound method. This extruder line boasts high-speed automation and can achieve single-sided or double-sided online compound forming. This replaces the traditional offline secondary and tertiary compound methods, reducing the number of production processes, significantly cutting production costs, and enhancing production efficiency. It also improves the compound strength and overall quality of the product.
| Species | TPU Casting Composite Film Production Line | TPU Film Production Line/Hot Melt Film Production Line | TPU High-low Temperature/High-elastic Film Co-extrusion Line | TPU Invisible Car Clothing Production Line |
| Model | JWS120/36 | JWS130/36 | JWS90+JWS100 | JWS 90/32 |
| Material | TPU | TPU | TPU | TPU |
| Production thickness(mm) | 0.02-2.0mm | 0.02-2.0mm | 0.02-0.5MM | 01.-0.2MM |
| Products Width(mm) | 1000-3000mm | 1000-3000mm | 1000-2000MM | 1600MM |
| Output (kg/h) | 200-300KG/H | 300-400KG/H | 200-250KG/H | 150-200KG/H |
The TPU film production line from Jwell Machinery China Company offers several advantages:
TPU Tape Casting Composite Film Production Line: The TPU film extrusion line uses a one-step tape casting compound method. This high-speed automated production line enables single-sided or double-sided online compound forming, replacing traditional offline secondary and tertiary compound methods. This reduces the number of production processes, significantly cuts production costs, enhances production efficiency, and improves the compound strength and overall quality of the product.
TPU Invisible Car Clothing Production Line: This production line utilizes a specially designed patented tape casting composite molding technology and a special extrusion screw design for TPU aliphatic materials. It is equipped with advanced and mature industry technologies, such as a fully automatic upper and lower release film unwinding device, online automatic adjustment and control of film thickness, and a fully automatic winding system, ensuring the automatic and stable operation of the production line.
TPU High and Low Temperature/High Elastic Film Coextrusion Production Line: TPU raw materials with varying temperature and hardness ranges are extruded by two or three extruders. This method is more economical, environmentally friendly, and efficient compared to the traditional process of offline recombination of high-temperature and low-temperature films.
TPU Film Production Line/Hot Melt Film Production Line: This production line uses high-speed extrusion, calendering, and tape casting forming. The product quality is excellent and controllable, with a thickness range of 0.01-2.0mm and a width of 1000-3000mm. It is suitable for TPU film product series with transparent, frosted, foggy surfaces and multi-layer composites in various colors.
TPU, or thermoplastic polyurethane, is categorized into polyester and polyether. TPU film is known for its high tensile strength, elasticity, wear resistance, and resistance to aging. It also boasts environmentally friendly properties, non-toxicity, resistance to mold and bacteria, and biocompatibility. It finds extensive use in footwear, clothing, inflatable toys, aquatic and underwater sports equipment, medical and fitness equipment, car seat materials, umbrellas, bags, packaging materials, and more. It can also be utilized in the optical and military industries.
Furthermore, TPU is used in invisible car clothing. This is a new type of high-performance, environmentally friendly film widely used in the automotive beauty and maintenance industry. It's a generic term for transparent paint protective film. It possesses exceptional toughness and, once installed, it can shield the car paint from the air, maintaining its high brightness for a long time. After further processing, the car clothing film exhibits scratch self-healing properties, providing long-lasting protection for the paint.
