The company employs a unique screw design specifically for self-made PE breathable film, resulting in high wear resistance and superior plasticization.
The longitudinal stretching system features high-precision speed, pressure, and temperature control, ensuring consistent moisture permeability.
The line includes an automatic film piercing system, a centralized lubrication system, and a deep embossing device.
The stretching gap is adjustable.
The design allows for quick replacement of the flower roller and rubber roller.
The line is equipped with a remote diagnosis function to promptly meet customer needs.
The high level of automation, including a patented design for a fully automatic winder, significantly reduces labor costs.
| Species | PE Breathable Film Production Line | PE Breathable Film Production Line |
| Model | JW130 | JW160 |
| Material | PE | PE |
| Products Width(mm) | 1600MM | 2200MM |
| Output (kg/h) | 450-600KG/H | 450-600KG/H |

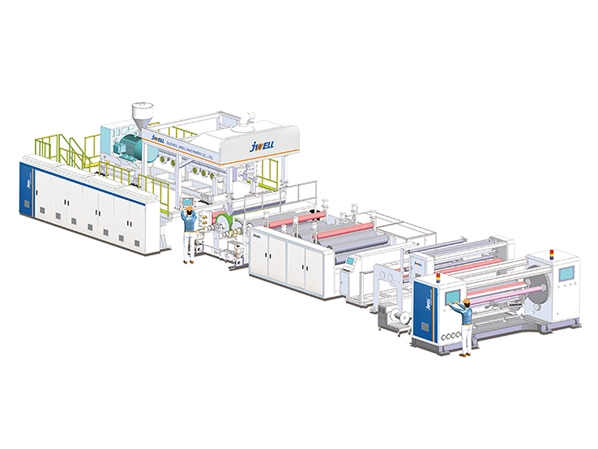

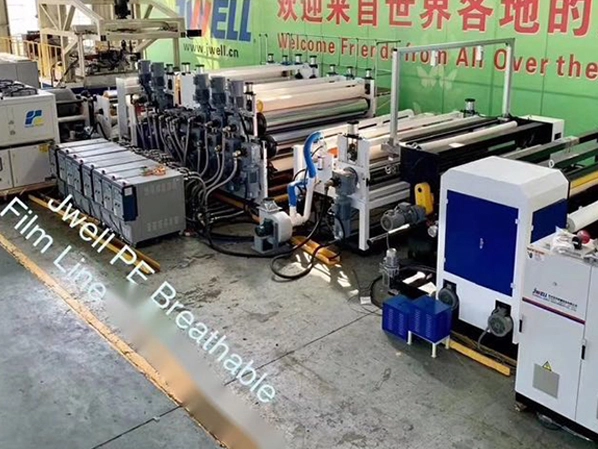

JWELL Machinery China Company's PE breathable film production line uses PE breathable colloidum as the raw material. It employs an extrusion flow-casting method to create PE modified breathable particles containing inorganic fillers. This is achieved through melting extrusion, mold forming, and roller high-magnification stretching to produce a breathable film with sub-nano micropores.
The production line features a special screw design for PE breathable film, offering high wear resistance and excellent plasticization.
It includes a longitudinal stretching system with high-precision speed, pressure, and temperature control, ensuring uniform permeability and humidity.
The line is equipped with an automatic film penetration system, a centralized lubrication system, and a deep embossing device.
The stretch clearance is adjustable.
The design allows for quick replacement of the flower roller and rubber roller.
The line comes with a remote diagnosis function to promptly address customer needs.
It features a patented automatic winding device, providing a high degree of automation and significant labor cost savings.
PE breathable film, as the name implies, uses PE as the base material and incorporates CaCO3. After undergoing a stretching process, the breathable film develops a unique microporous structure. This design results in densely distributed micro-pores on the film's surface that prevent liquid leakage while allowing gas molecules like water vapor to pass through. Hence, they possess the property of being "breathable yet waterproof". The end products from Jwell's PE breathable film extrusion line find extensive use in:
Everyday items: These include raincoats, suit covers, eye masks, various tablecloths, shower caps, shower curtains, water bags, and more.
Hygiene products: These encompass diapers, sanitary pads, medical surgical gowns, specialized medical packaging, and food packaging.
Packaging products: These are used for computers, air conditioners, electrical dust covers, car covers, flexible cosmetic packaging, shopping bags, gift bags, folders, and archive bags.
Fashion packaging: This includes cosmetic bags, high-end stationery, shoulder saliva, wardrobes, fishing bags, handbags, and other types of bags.
