Origin: China
Certification: ISO, CE, UL, TUV
Electrical Component: Siemens, Schneider, Omron, Celduc, Abb Etc.
Mechanical Part: Quality Controlled, All Made By Jwell
High Quality
Large Capacity
Global After-Sales Support (300 Engineers)
Over 30 Years of Manufacturing Experience
The equipment's mechanical component is entirely self-made, and its quality is controllable.

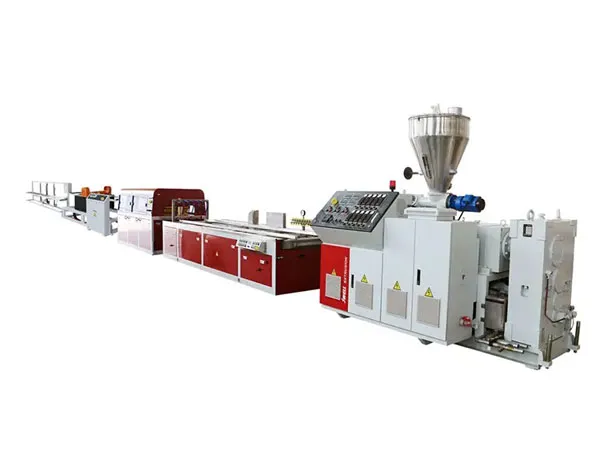

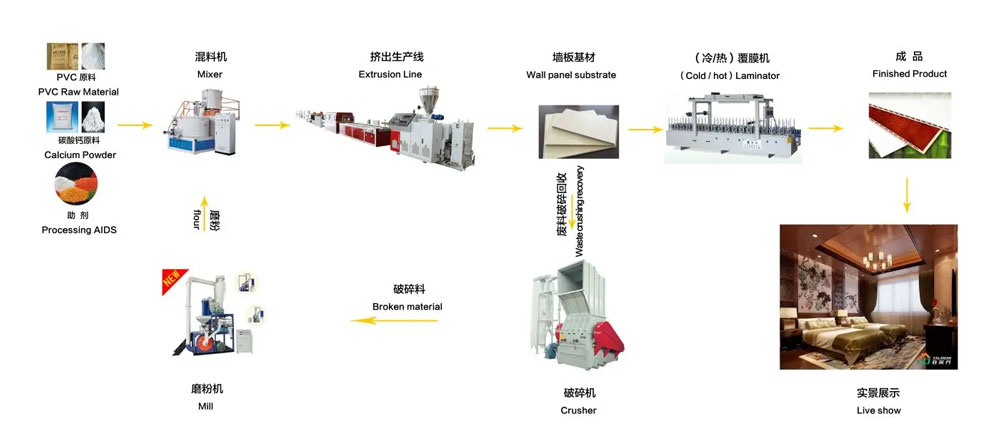

Material →Heating Cooling Mixer →Material Feeding →Conical Twin Screw Extruder →Extrusion Mould & calibrator → Cooling →Printer → Haul-off Unit →cutter →stacker
Type | YF108 | YF240 | YF240A | YF300 | YF400 |
Max width(mm) | 108 | 240 | 150*2 | 300 | 400 |
Extruder model | SJZ55/110 | SJZ65/132 | SJZ65/132 | SJZ65/132 | SJZ80/156 |
Max capacity(kg/h) | 150 | 250 | 250 | 250 | 450 |
Extruder power(kw) | 22 | 37 | 37 | 37 | 55 |
Cooling water(m3/h) | 7 | 8 | 8 | 8 | 8 |
Digital PLC control or a manual temperature control meter are available for extruder temperature control systems.
High extrusion efficiency, dependable performance, simple maintenance, and ease of operation.

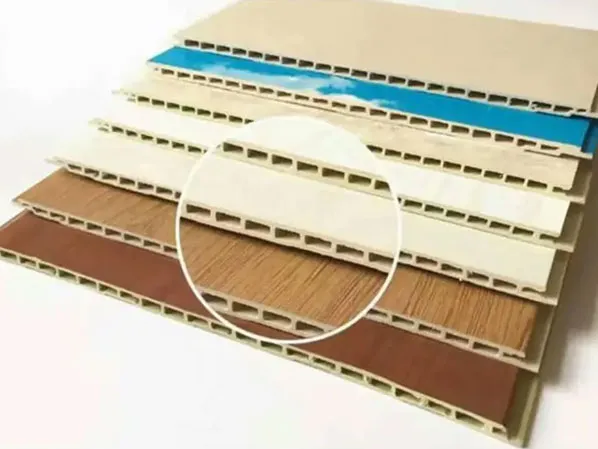

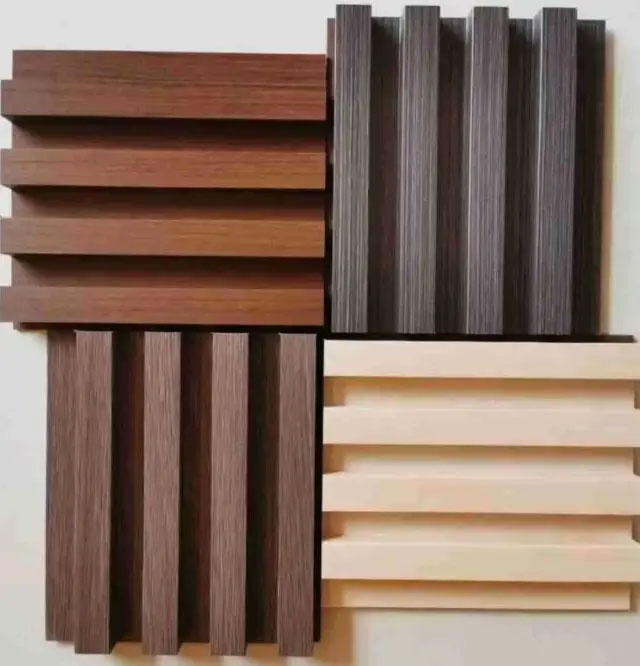

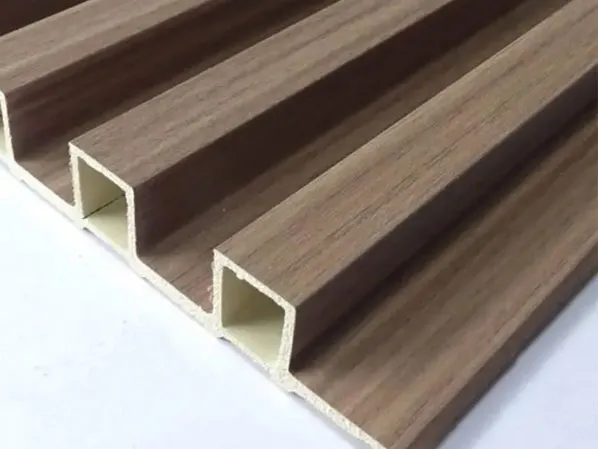

It is primarily used to make wood-plastic ornamental materials, which are extensively utilized in the metalworking and home improvement industries.

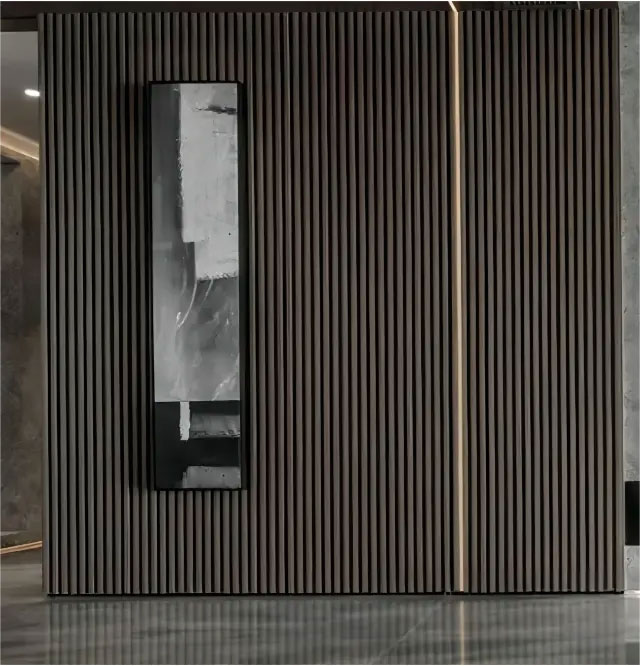

High-end wall finishes, suspended ceilings, door and window coverings, sound absorption, and heat preservation are all possible uses for it.
1. Non-flammable and self-extinguishing.
2. It won't rust or corrode and is impervious to termites and insects.
3. Waterproof, washable, and resistant to weather and certain chemicals.
4. There is no peeling on the great, exceptional, and rigid affected surface.
5. Natural wood grain: demonstrating genuine wood structure and creative vision.
6. Simple to rivet, sawet, drill, nail, and cut. Doing it yourself is fine.
7. Easy upkeep and no painting is required.
8. Time and labor costs can be greatly reduced by the quick and easy installation.
