The extruder in the production line uses a multi-machine co-extrusion single screw extruder, which can extrude both EVA and POE layers. This ensures performance while significantly reducing costs.
The roller body part features double-sided embossing.
The cooling section of the EVA/POE Film Extrusion uses a cooling unit and a stress-relieving cold bed. This ensures the film runs smoothly and is fully set, maintaining a shrinkage rate of less than 3%.
The entire EVA/POE Film Extrusion Line is controlled by a PLC automatic control system, enabling human-machine interface operation. The production line is equipped with an online quality monitoring and control system to ensure the product's pass rate.
The coiling machine, produced by Jwell Machine Company, has flexible configuration requirements. This enables automatic production and labor cost savings.
| Species | EVA/POE Film Extrusion Line | EVA/POE Film Extrusion Line | PVB/SGP Film Extrusion Line |
| Model | JWS120/150/120-2400 | JWS180-2400 | JWE95-JWE65 |
| Material | EVA POE | EVA POE | PVB SGP |
| Production thickness(mm) | 0.38-1.0MM | 0.38-1.0MM | 0.38-1.52MM |
| Products Width(mm) | 2000-2400MM | 2000-2400MM | 2400-3600MM |
| Output (kg/h) | 700-750KG/H | 600-700KG/H | 600-700KG/H |
Key features of Jwell Company's EVA and Poe film production line include:
The casting extruder uses a specialized single screw extrusion for EVA/POE. The screw barrel's constant temperature circulating water cooling system addresses the technical challenges of EVA plasticization and non-crosslinking. It also allows for multi-machine coextrusion, enabling the use of two materials simultaneously to ensure performance while saving costs.
The roller body features double-sided embossing, which solves the technical issue of adhesive film sticking to the roller.
The cooling section of the EVA and Poe film extrusion line uses a cooling roller and a stress-relief cooling bed. This ensures the rubber film runs smoothly and is fully set, maintaining a shrinkage rate of less than 3%.
The entire EVA and Poe film extrusion line is controlled by a PLC automatic control system, enabling human-machine interface operation.
The EVA and Poe film production line is equipped with an online quality inspection and control system to ensure the product's pass rate.
The patented fully automatic winder enables the entire machine to operate automatically, resulting in significant labor cost savings.

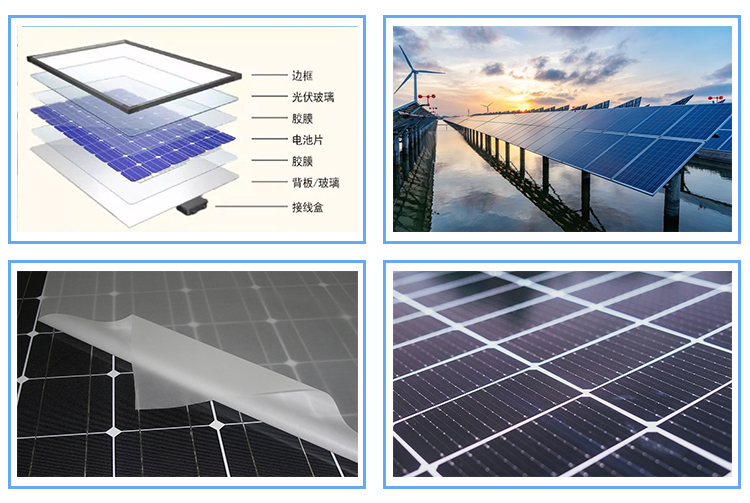

EVA/POE film is utilized in various industries such as solar photovoltaic power stations, building glass curtain walls, automotive glass, functional shed films, packaging films, and hot melt adhesives.
PVB/SGP film is extensively used in the construction of laminated glass for buildings and vehicles, bulletproof glass, and soundproof glass. It offers excellent safety features, preventing glass from shattering due to external forces and causing injury from flying shards. It also provides sound insulation and anti-ultraviolet functions and can be produced as colored or highly transparent film.
