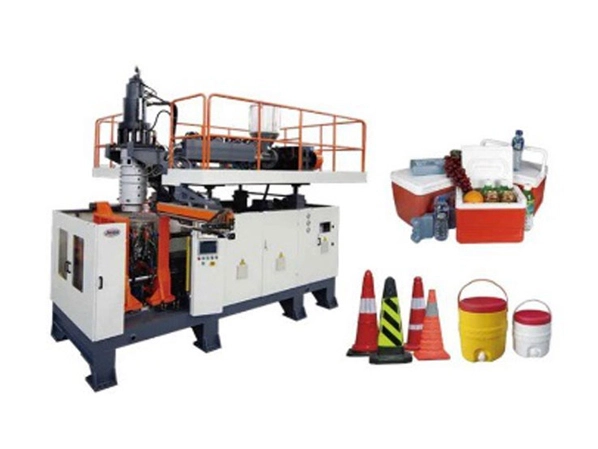

The PP blow molding machine, which uses PP plastic for one-time blow molding, is a product of a rapidly advancing plastic processing method. During production, the PP plastic is extruded into a tubular plastic parison. This parison is placed in a mold while still hot, and compressed air is introduced into the parison immediately after the mold is closed. This causes the plastic parison to inflate and adhere closely to the inner wall of the mold. After cooling, shaping, and demolding, blow molding pallets of various sizes are produced. Currently, the volume of blow-molded products can reach up to thousands of liters. The largest PP blow molding machine developed and manufactured in China can reach 2000L, and the equipment is computer-controlled. As a result, the quality of its products is among the best in the plastic industry.
| Model | Unit | BM30 | BM50 |
| Max product volume | L | 500 | 1000 |
| Dry cycle | Pc/h | 250 | 155 |
| Die head structure | Accumulating type | ||
| Main screw diameter | mm | 100*2 | 120*2 |
| Max plasticizing capacity (PE) | kg/h | 400 | 700 |
| Driving motor | Kw | 90*2 | 132*2 |
| Accumulating volume | L | 40 | 60 |
| Oil pump motor power | Kw | 40 | 55 |
| Clamping force | KN | 1300 | 1800 |
| Space between platen | mm | 950-2000 | 1000-2700 |
| Platen size W*H | mm | 1400*1800 | 1900*2300 |
| Max.mould size | mm | 1200*1920 | 1750*2200 |
| Heating power of die head | Kw | 50 | 65 |
| Machine dimension L*W*H | m | 104*8.2*6.5 | 14*12*8.5 |
| Machine weight | T | 45 | 70 |
| Total power | Kw | 325 | 460 |
Note: Informations listed above are for reference only, the production line can be designed by customer's requirements.
The PP blow molding machine is a cost-effective investment. It's a versatile machine that reduces investment costs, and the mold cost is low, making the investment minimal. The rigidity and strength of the PP blow molding products can be enhanced by improving the structural design and using special blow molding methods. This results in flat surfaces on the PP blow molding products, improving their adaptability and lifespan, and significantly reducing usage costs.
The machine uses an automatic cutting flash mold, which saves labor and increases production efficiency.
The equipment can be equipped with an automatic recycle system, achieving full automation of products.
The mold can be designed as a single cavity or a multi-cavity mold as needed.
The machine uses a servo hydraulic system to accurately control pressure and flow, resulting in low energy consumption.
The mold clamping system uses high-precision guide rails to ensure quick platen movement. The independently developed oil cylinder provides a large clamping force, and when combined with the servo hydraulic system, it offers fast clamping and high precision.
The parison control system uses the MOOG III 200 point parison control system, ensuring perfect control over product weight and thickness.
The electronic control system of the PP blow molding machine uses a human-machine interface. All parameters, such as rotating speed, temperature setting, and hydraulic system working pressure, can be set on the touch screen.
The extrusion system uses the Jinhailuo brand screw & barrel, which has been a leading screw brand in China since 1978.

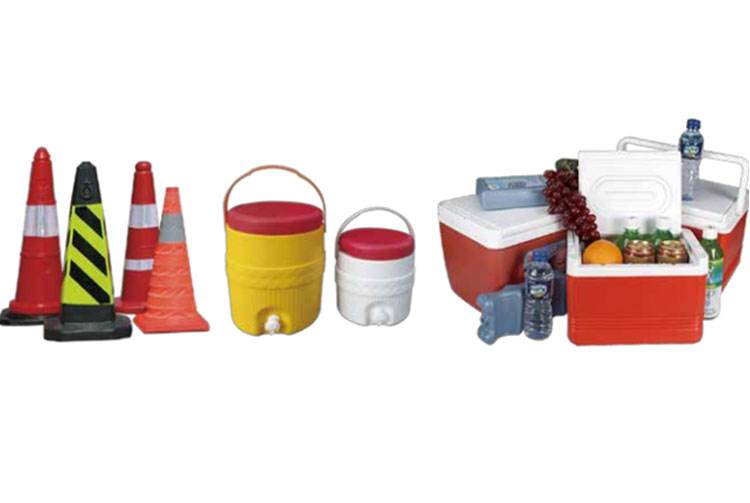

The PP Plastic Blow Molding Machine is versatile and can be used to produce a variety of items including:
Petrochemical Products: such as jerrycans, lubricant containers, drums, and fuel tanks.
Automotive Parts: including water tanks, automotive components, and air ducts.
Dairy Packaging: such as wide-mouth bottles, slat bottles, yogurt containers, drinking bottles, edible oil containers, food containers, and milk bottles.
Cleaning Products: like containers for liquid detergents and detergents.
Toys: including balls, sliders, fences, etc.
Cosmetic Packaging: for products like lotion and shampoo.
Water Packaging: including buckets and kettles.
Medical Supplies: such as hospital beds.

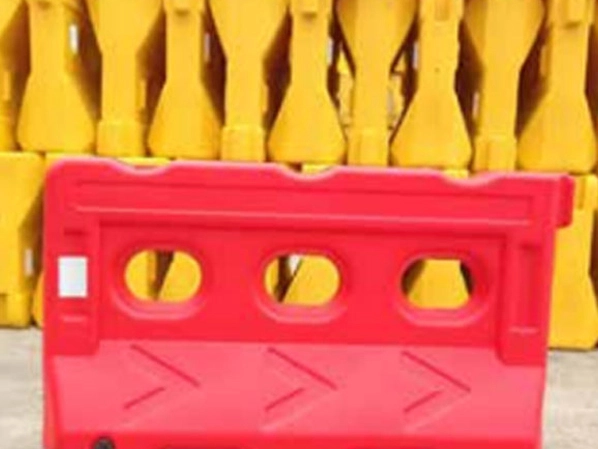

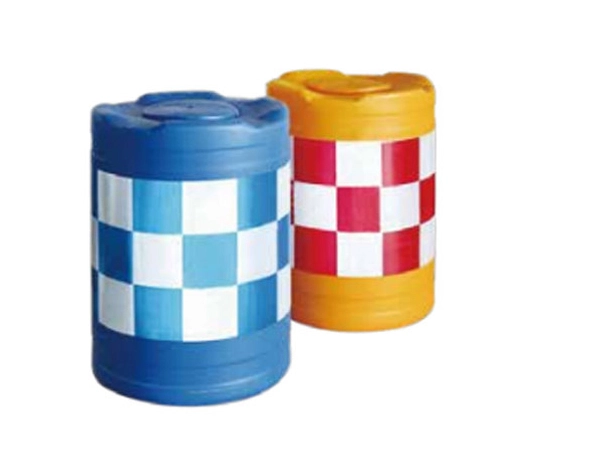

Outdoor Equipment: including float buckets, construction materials, refrigerators, roadblocks, tables, chairs, and tool kits.
