The BCF Spinning Machine utilizes PA6, PET, and PP as raw materials, employing a one-step process of spinning, drafting, and deformation to produce BCF yarn. Recycled PP materials can be incorporated to reduce costs, while PET can be made from 100% recycled bottle flakes.
PP fiber is one of the most promising synthetic fibers, ranking as the second-largest in production. Polypropylene is used to create various products, including staple fiber, filament, non-woven materials, tobacco tow, and bulk continuous filament.
BCF (bulky continuous filament) is produced using a filament extruder line. There are three main production methods:
One-step method: Continuous spinning, drawing, texturing, and winding in a single process.
Three-step method: Combines spinning and stretching, or combines yarn deformation with spinning and winding, followed by stretching and deformation.
Two-step method: Conventional spinning with individual bobbins of one color, followed by the combination of three different colored bobbins, which are stretched or deformed to create BCF.
Materials: PP, PET, PA6
Denier (D) Range: 600-3600
Mechanical Speed: 2800 m/min
Number of Positions: 2/3 positions (customizable)
Hot Godet Dimension: φ220 mm
Expansion Texturizer: Friction blade type or non-sheet type texturizer
Winders: Automatic
Item | Specification |
Place of Origin | China |
Brand Name | JWELL |
Model Number | PP |
Certification | CE, ISO |
Minimum Order Quantity | 1 SET |

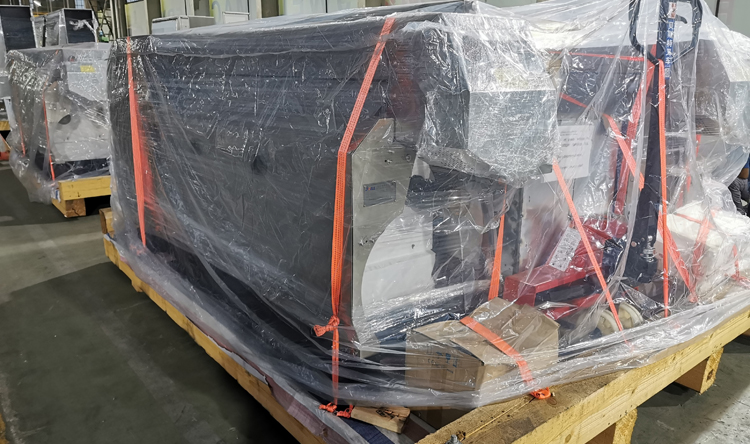

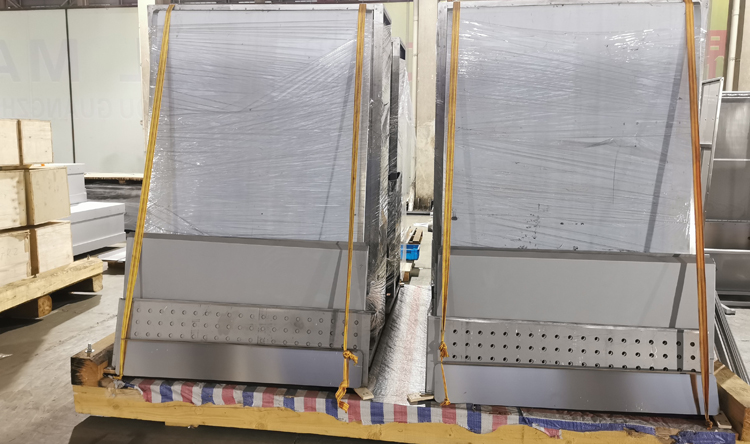

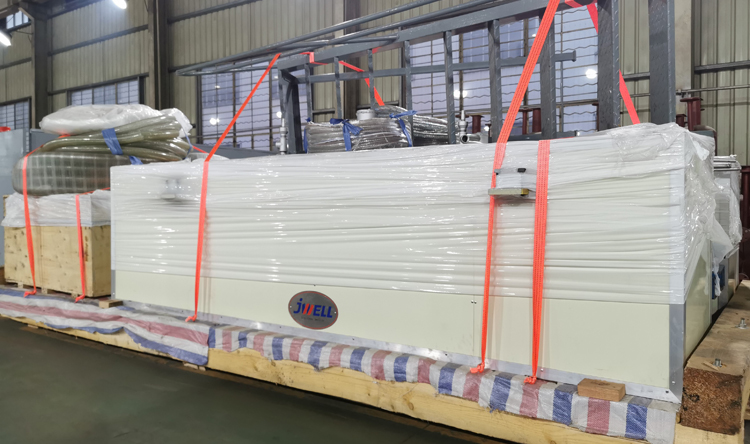

Packaging Details | Wooden pallet packing |
Delivery Time | 90 days |
Payment Terms | TT, LC |
(Here, you can elaborate on the various applications of the BCF Spinning Machine or rephrase as necessary.)

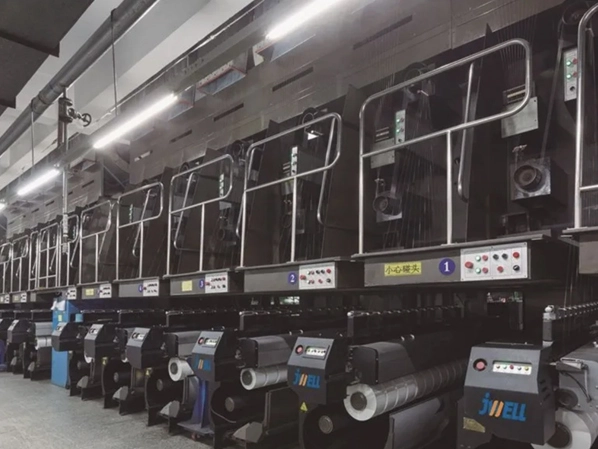

Comprehensive Equipment: Integrates spinning, drawing, winding, and other modular systems to produce uniform monochrome carpet yarns. A color dosing system ensures color consistency.
Advanced Design: New screw, barrel, and process design to accommodate various types of polymers.
Enhanced Spin Pack: Specially designed expanded spin pack ensures even distribution of the spinning melt and smooth flow.
Improved Stability: A unique rotary expanded component enhances the stability of BCF yarn.
Efficient Monomer Suction: A dedicated suction system removes oligomers and lactams.
Optimized Nozzle & Cooling System: New nozzle design, paired with an optimized cooling drum, ensures excellent curl formation.
Precision Heating: Hot godets use synchronous motors with high-frequency heating and imported temperature control transmitters for precise temperature regulation.

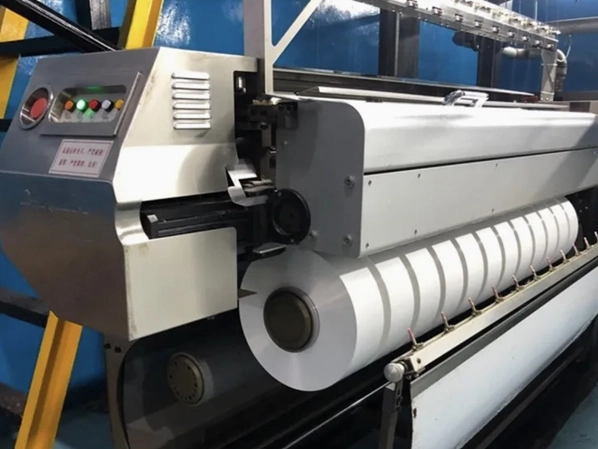

Automatic Winding System: Ensures constant yarn tension, excellent yarn shape, and smooth transfer.
PET/PP chips.
Please contact us for specific delivery details.
Yes, we offer installation services.
