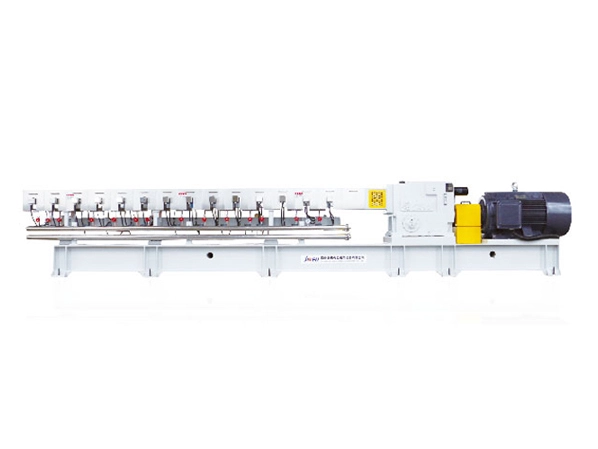

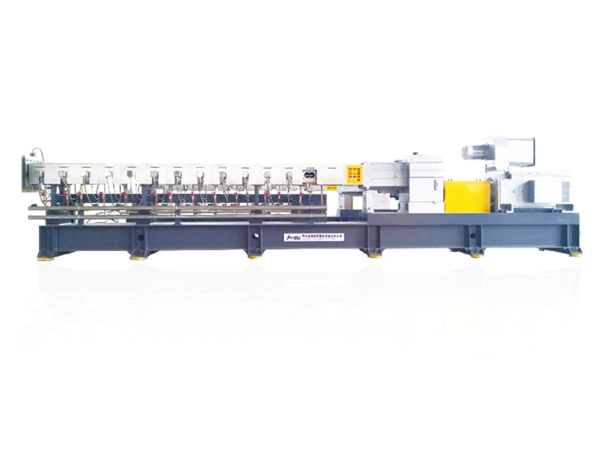

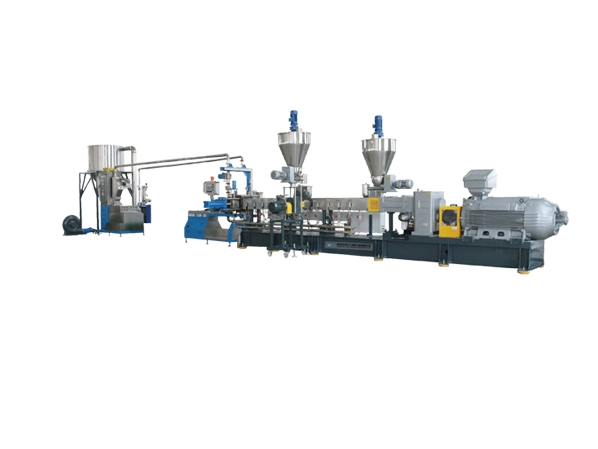

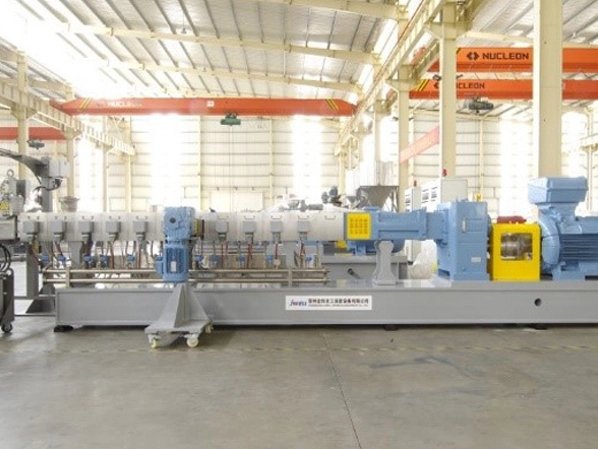

Key Specifications for CJWV Large Volume Series Twin Screw Extruders: The CJWV series of twin-screw extruders, characterized as deep groove type, have a larger free volume. This machine is suitable for high filling applications, and the co-rotating twin screw extruder is known for its high efficiency, high capacity, and stable operation, earning high praise from our customers.
Considering the unique rheological properties of PU/TPU raw materials, as one of the world's leading co-rotating twin screw extruder manufacturers, we have made significant efforts to improve the barrel processing accuracy and cooling effect. Simultaneously, we have updated and redesigned the core components, effectively addressing some of the bottleneck issues in the production process. This has resulted in a significant improvement in reaction efficiency and output capacity, which has been well received by our customers.
| Technical parameters | ||||||
| Model | Diameter | L/D | Screw speed | Motor Power | Specific torque | Capacity Range |
| mm | rpm/min | KW | T/A3 | kg/hr | ||
| CJWV44 | 42.6 | 24~68 | 600 | 37 | 8.7 | 150~300 |
| 800 | 55 | 220~440 | ||||
| CJWV55 | 53.2 | 24~68 | 600 | 55 | 8.7 | 300~600 |
| 1000 | 90 | 440~880 | ||||
| CJWV66 | 64 | 24~68 | 600 | 110 | 8.7 | 530~1060 |
| 900 | 160 | 740~1480 | ||||
| CJWV77 | 74 | 24~68 | 600 | 200 | 8.7 | 800~1600 |
| 900 | 280 | 1000~2000 | ||||
| CJWV86 | 83.6 | 24~68 | 600 | 280 | 8.7 | 1100~2200 |
| 800 | 400 | 1600~3200 | ||||
| CJWV100 | 96 | 24~68 | 600 | 400 | 8.7 | 1800~3600 |
| 800 | 560 | 2000~4000 | ||||
| CJWV110 | 110.6 | 24~68 | 600 | 630 | 8.7 | 2200~4400 |
| 700 | 730 | 3000~6000 | ||||
| CJWV125 | 123 | 24~68 | 500 | 800 | 8.7 | 3000~6000 |
| 600 | 900 | 3600~7200 | ||||
| CJWV140 | 135.6 | 24~68 | 500 | 1100 | 8.7 | 3200~6400 |
| 600 | 1300 | 4000~8000 | ||||

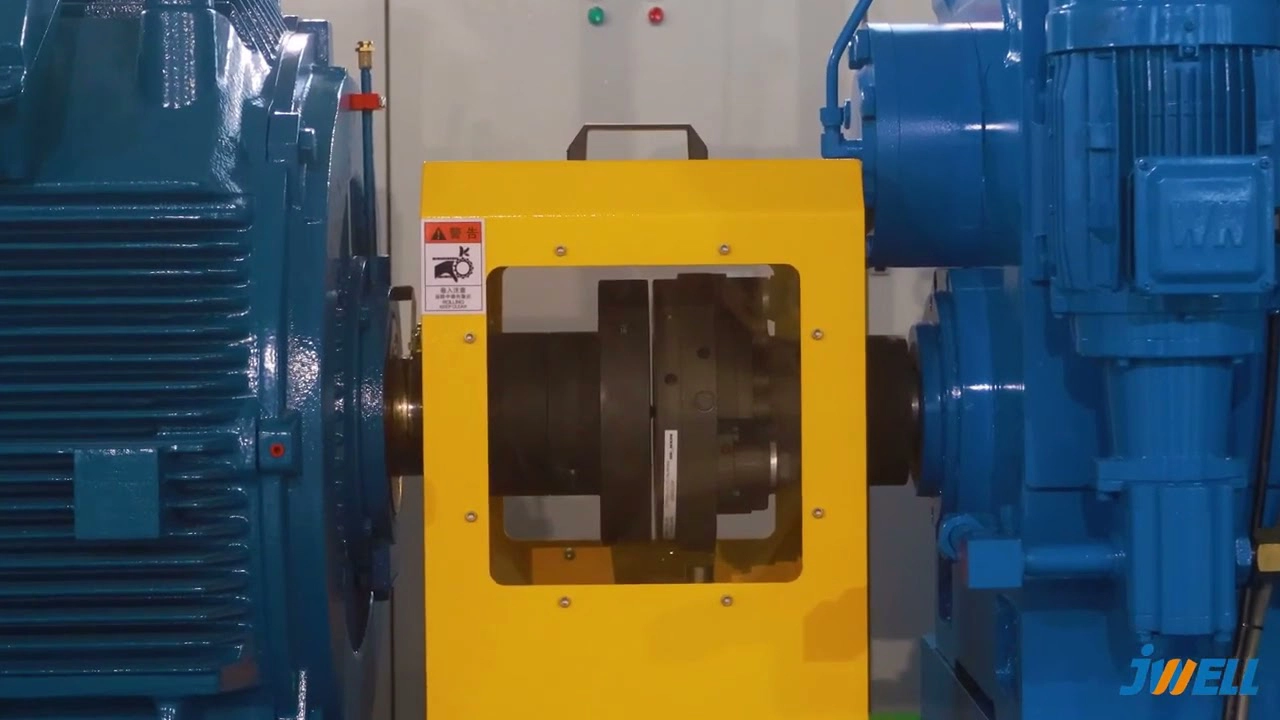

Deceleration system: Jwell extrusion machinery utilizes specialized gearboxes. The transmission components are made from high-quality, super-high alloy carburized steel, and undergo carburizing, quenching, and gear grinding processes. Key parts receive additional surface strengthening treatment, with tooth surface strength at hrc54-62 and core hardness at hrc30-40. The gear is grade 6. The system is characterized by high speed, high torque, and low noise.
Feeding system: A double-screw with agitator quantitative feeding system is used, ensuring uniform and accurate feeding without any racking phenomenon.
Electrical control system: The system uses imported electrical components. The control panel features a human-machine interface. Each part of the equipment uses "module" control (which can also be configured according to user requirements). The multi-functional module has a clear structure and includes safety interlocking devices (such as lubrication loss-of-pressure protection, machine head pressure protection, over-current protection, etc.). This accurately reflects the equipment's operating conditions, providing accurate control, high sensitivity, and easy operation.
1. Thermoplastic Elastomers Series: Thermoplastics are currently the most promising new materials, combining the benefits of both plastic and rubber. They can be utilized in various sectors such as automotive, electronics, engineering, and medical. The series includes:
TPS
TPU
TPV
TPEE
TPO
2. Silicone Adhesive Series: Our silicone adhesive equipment range is one of our top products. Built on years of technological accumulation and customer feedback, our silicone equipment has become a competitive product known for its proven techniques, stable operation, and excellent reputation.
