JWELL is a blow molding machine manufacturer that combines design, production, and service. We offer 23 series of JWZ-BM type specifications for customers to choose from. We consistently focus on research and development projects and invest in technology, which enhances our brand's power.
Simultaneously, to cater to our customers' needs, Jwell extruder China company continues to focus on energy, automation, energy saving, and environmental protection. This ensures the quality of our products while paying close attention to the finer details. We leverage our technological, quality, and service advantages to work with users and partners to generate more value. The market potential for blow molding pallets in industries such as transportation is substantial.
| Technical parameters | ||||
| Model | Unit | BM05D | BM12D | BM20D |
| Max product volume | L | 5 | 12 | 20 |
| Dry cycle | Pc/h | 700*2 | 600*2 | 600*2 |
| Die head structure | Continuous type | |||
| Main screw diameter | mm | 75 | 90 | 90 |
| Max plasticizing capacity (PE) | kg/h | 90 | 160 | 160 |
| Driving motor | Kw | 30 | 45 | 45 |
| Oil pump motor power | Kw | 11 | 15 | 15 |
| Clamping force | KN | 70 | 120 | 160 |
| Space between platen | mm | 150-510 | 240-640 | 280-680 |
| Platen size W*H | mm | 350*400 | 450*500 | 500*520 |
| Max. mould size | mm | 360*400 | 500*520 | 560*520 |
| Platen moving stroke | mm | 450/520 | 600/650 | 650 |
| Heating power of die head | Kw | 7.5 | 10 | 12.5 |
| Machine dimension L*W*H | m | 3.7*3.1*2.7 | 4.2*3.2*3.0 | 4.3*3.2*3.1 |
| Machine weight | T | 8.5 | 12 | 14 |
| Total power | Kw | 60 | 90 | 93 |
Note: Informations listed above are for reference only, the production line can be designed by customer's requirements.
The machine allows for multi-point dynamic adjustment of the curve, ensuring smooth operation without any jagged blanks.
The servo motor of the extrusion blow molding machine responds quickly to forward and reverse switching, eliminating any lag.
The wall thickness actuator is designed for high precision and strong fatigue resistance, making it suitable for long-term production.
The high-frequency operation control system is characterized by its quick response, short cycle, and high consistency in curve repetition.
The mold’s cooling channel is designed efficiently, resulting in a short cooling time.
The mold blade experiences minimal wear and tear, ensuring a long lifespan, clean and stable flashing.
The machine features a quick installation lock and a fast water pipe connection.

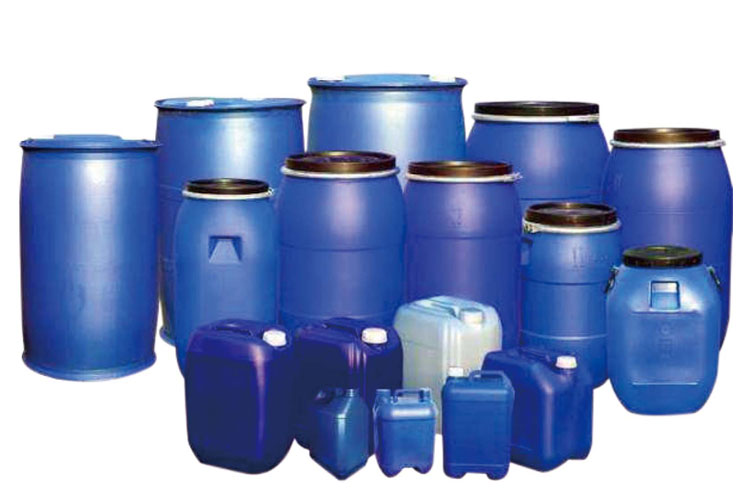

The Double Station blow molding machine is capable of producing a wide range of blow molding products. These include plastic bottles, pots, tanks, drums, tool bags, seats, tabletops, blow-molded pallets, and automotive plastic parts, with capacities ranging from 5ML to 1000L.
