Origin: China
Certifications: ISO, CE, UL, TUV
Electrical Components: Siemens, Schneider, Omron, Celduc, ABB, etc.
Mechanical Components: Manufactured entirely by Jwell, ensuring full quality control.
1. Superior Quality
2. High Capacity
3. Global After-Sales Support (300 Engineers)
4. Over 30 Years of Manufacturing Experience
5. Fully Self-Produced Mechanical Parts, Enabling Complete Quality Control
Type | Diameter (mm) | Extruder | Capacity (kg/h) | Power (kW) |
JWPEG-63 | 20-63 | JWS65/33 | 100-150 | 100 |
JWPEG-110 | 20-110 | JWS65/33 | 150-200 | 130 |
JWPEG-160 | 63-160 | JWS65/33 | 200-250 | 145 |

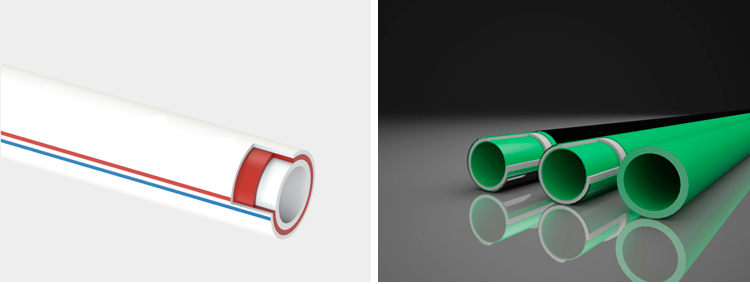

The Fiberglass Reinforced PP-R (FR/PP-R) pipe is a high-performance pipe produced using advanced multi-layer co-extrusion technology at low temperatures and high speeds. This process is supported by specialized equipment developed by Jwell. The pipe features a unique structure, high automation, and user-friendly operation. The extruder screw is designed for high efficiency, offering excellent output, plasticization, and stability.
Fiberglass-reinforced PP-R pipes are primarily used for delivering drinking water and transporting both hot and cold water. In addition to retaining all the benefits of traditional PP-R pipes, these enhanced fiberglass pipes offer several advantages:
1. Reduced Expansion: The linear expansion coefficient is only 20-30% of that of standard PP-R pipes, effectively solving the expansion issues commonly seen with plastic pipes.
2. Enhanced Rigidity: The increased rigidity prevents sagging, reducing the number of required support points and lowering overall project costs.
3. Higher Pressure Tolerance: These pipes offer superior pressure resistance and a longer lifespan, even under typical tremor forces.
4. Better Temperature Resistance: With improved high-temperature resistance, FR/PP-R pipes can handle temperatures of 95-100°C in hot water systems. This reduces insulation material thickness and cuts comprehensive project costs.
5. Increased Water Flow: The internal diameter of the FR/PP-R pipe increases due to its enhanced rigidity, leading to a 20% increase in water flow at the same pressure level.
6. Wide Range of Applications: Thanks to its unique advantages, PPR fiberglass pipes are used across various industries, including petroleum, power generation, chemicals, new energy, urban water supply and drainage, factory wastewater treatment, seawater desalination, and gas transmission.
This technology brings better performance and efficiency to industries requiring durable and high-performance piping systems.
