JWELL is a leading manufacturer and supplier of HDPE blow molding machines in China. The HDPE blow molding machine, also known as the HDPE blow moulding machine, is primarily used for processing unsupported parisons. The machine offers several advantages such as high production efficiency, low equipment costs, and a wide range of mold and machinery options. However, it also has some disadvantages, including a high scrap rate, poor waste recycling, and limited utilization. The thickness control of the product during the HDPE blow molding machine process and the dispersibility of the raw materials are also restricted. Additionally, trimming operations are required after molding. If you are interested in our HDPE blow molding machine, please contact us for pricing information!
| HDPE hdpe blow moulding machine Technical Details | ||||
| Model | Unit | BM30 | BM50 | BM100 |
| Max product volume | L | 30 | 50 | 100 |
| Dry cycle | Pc/h | 600 | 450 | 360 |
| Die head structure | Accumulating type | |||
| Main screw diameter | mm | 80 | 90 | 100 |
| Max plasticizing capacity (PE) | kg/h | 120 | 180 | 190 |
| Driving motor | Kw | 37 | 45 | 55 |
| Accumulating volume | L | 5.2 | 6.2 | 12.8 |
| Oil pump motor power | Kw | 15 | 18.5 | 22 |
| Clamping force | KN | 280 | 400 | 600 |
| Space between platen | mm | 400-900 | 450-1200 | 500-1300 |
| Platen size W*H | mm | 740*740 | 880*880 | 1020*1000 |
| Max.mould size | mm | 550*650 | 700*850 | 800*1200 |
| Heating power of die head | Kw | 20 | 28 | 30 |
| Machine dimension L*W*H | m | 4.3*2.2*3.5 | 5.6*2.4*3.8 | 5.5*2.5*4.0 |
| Machine weight | T | 12 | 13.5 | 16 |
| Total power | Kw | 95 | 110 | 135 |
Note: Informations listed above are for reference only, the production line can be designed by customer's requirements.

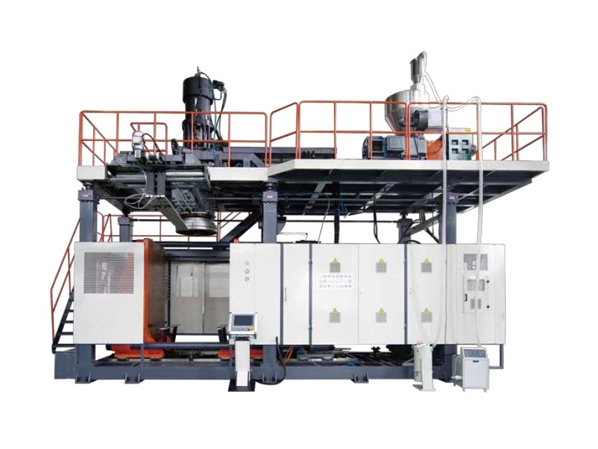

HDPE plastic blow molding machine manufacturers utilize a storage head, high-efficiency screw, and bottom blowing structure. These machines can be equipped with automatic flash removal, online leak detection, weighing, and conveying systems, as well as online flash conveying systems to reduce labor costs and increase productivity.
The machines use a B&R automation parison programmer, which supports multi-task time-sharing operations and offers a high degree of automation. They also feature a 400-point wall thickness control system, ATOS servo valve, and precise parison thickness control.

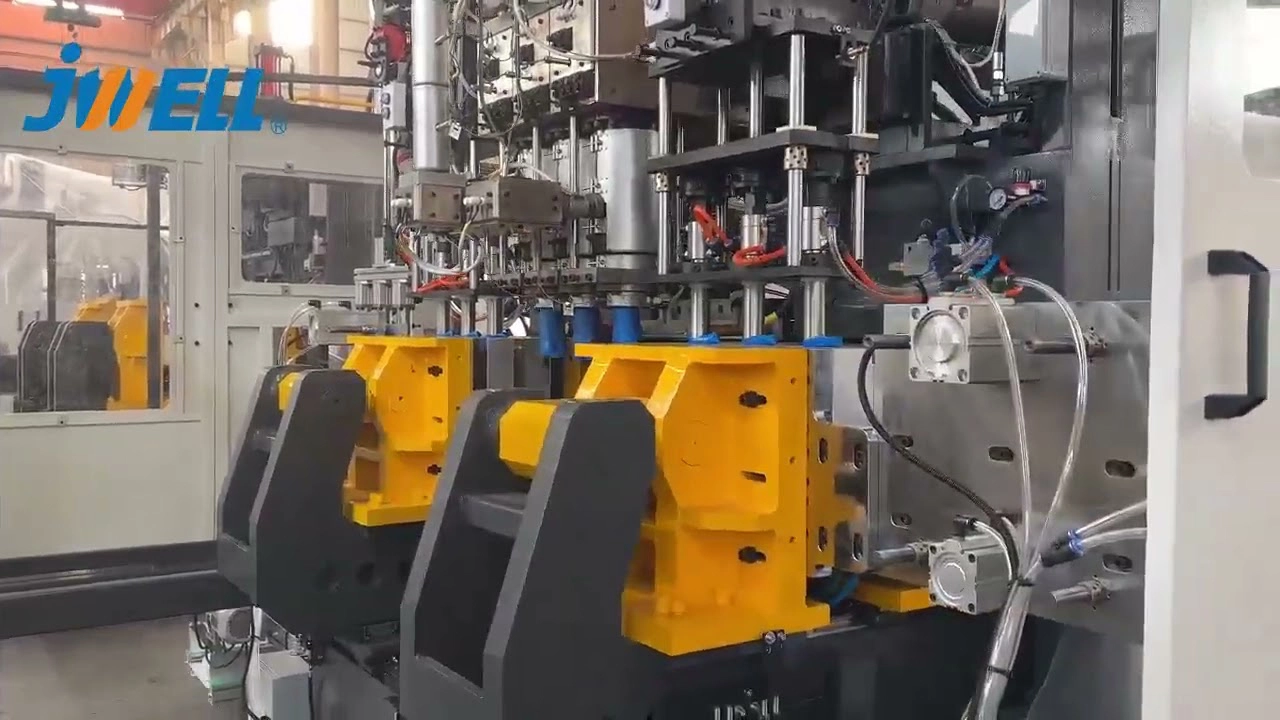

The mold-moving frame uses a tie-bar-less structure, offering uniform mold clamping, large clamping force, and large modulus. This makes mold disassembly and assembly more convenient. The movement of the mold, as well as its opening and closing, are controlled by a servo system and electronic ruler, ensuring smooth and silent operation.

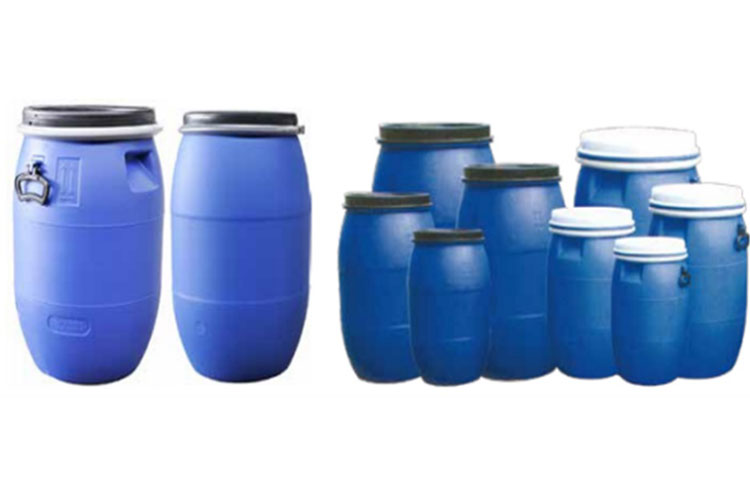

The HDPE bottle blow molding machine is ideal for creating chemical packaging of various sizes, ranging from 15 to 30 liters. It can also produce jerrycans of different sizes, from 15 to 100 liters, as well as open-top barrels and other chemical packaging products.
