Name: Multi-layer Single-layer HDPE Water Supply Pipe/Gas Pipe Energy-Saving and High-Speed Extrusion Line
Brand: Jwell Machinery

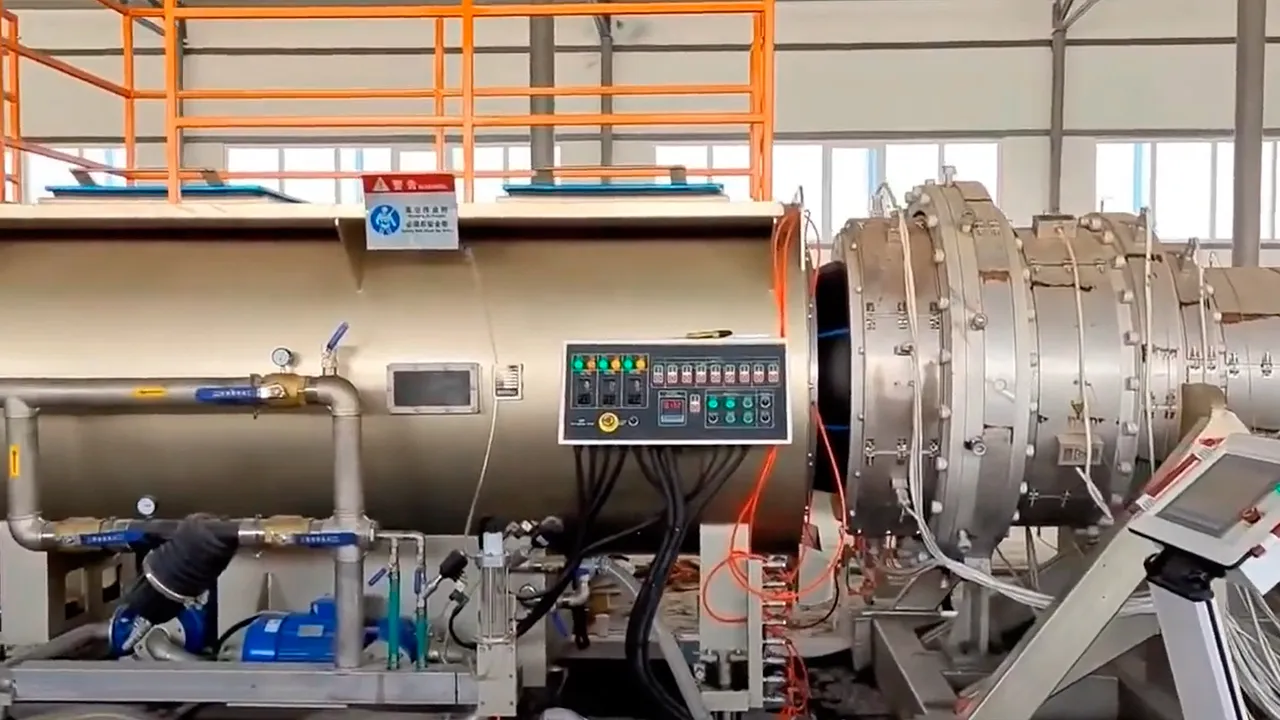

Video of Multi-layer Single-layer HDPE Water Supply Pipe/Gas Pipe Energy-Saving and High-Speed Extrusion Line

Competitive Advantages of Multi-layer Single-layer HDPE Water Supply Pipe/Gas Pipe Energy-Saving and High-Speed Extrusion Line

1. Superior Quality

2. High Capacity

3. Global After-Sales Support (300 Engineers)

4. Over 30 Years of Manufacturing Experience

5. Fully Self-Manufactured Mechanical Parts, Ensuring Complete Quality Control

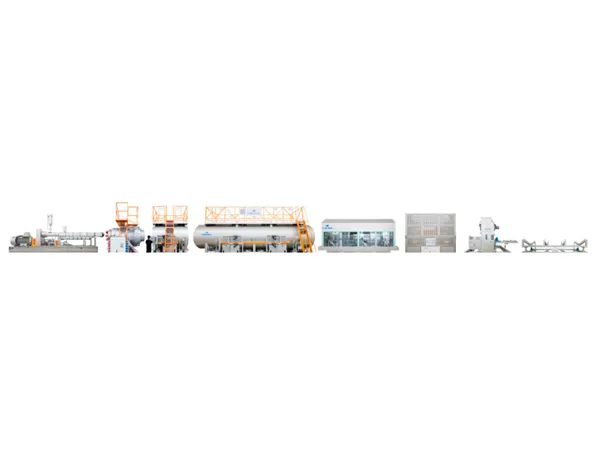

Machine Description of Multi-layer Single-layer HDPE Water Supply Pipe/Gas Pipe Energy-Saving and High-Speed Extrusion Line

This advanced energy-saving and high-speed extrusion line is designed by our company using cutting-edge European technology, suitable for the high-speed production of HDPE, PP, and other polyolefin pipes. Compared to standard production lines, this line offers a 35% energy saving and more than doubles production efficiency, which helps reduce space and labor costs while boosting productivity.

The pipes produced by this line offer excellent rigidity, strength, flexibility, creep resistance, environmental stress cracking resistance, and superior hot melt performance. These characteristics make them the preferred choice for urban gas pipelines and outdoor water supply systems.

The production line boasts a sleek design, high automation, and stable, reliable operation.

Machine Advantages of Multi-layer Single-layer HDPE Water Supply Pipe/Gas Pipe Energy-Saving and High-Speed Extrusion Line

To meet the specific requirements of users, we offer a range of options, including 2-layer, 3-layer, 5-layer, and multi-layer solid pipes. Multiple extruders can be synchronized, and a multi-meter weight control system can be selected. The entire process is centrally controlled via the main PLC, ensuring precise and quantitative extrusion for each extruder.

The multi-layer spiral mold is designed with varying layer thickness ratios and well-distributed mold cavity flow channels, ensuring uniform pipe wall thickness and excellent plasticization for each layer.

The advanced Siemens computer control system integrates and closes the loop across the entire production line. It also features energy consumption tracking, remote diagnostics (for efficient after-sales service), maintenance reminders (for easy upkeep), and advanced meter-weight control technology that ensures tight tolerance control for wall thickness.

Product Parameters of Multi-layer Single-layer HDPE Water Supply Pipe/Gas Pipe Energy-Saving and High-Speed Extrusion Line

Type	Pipe Spec (mm)	Extruder	Max. Output (kg/h)	Total Power (kW)
JWGXPE-63	ф20-ф63	JWSG-60/38	420	150
JWGXPE-250	ф75-ф250	JWSG-75/38	500	230
JWGXPE-250	ф110-ф315	JWSG-75/38	600	230
JWGXPE-450	ф200-ф500	JWSG-90/38	700	384
JWGXPE-630	ф315-ф630	JWSG-90/38	960	466
JWGXPE-800	ф400-ф800	JWSG-120/38	1200	644
JWGXPE-1000	ф500-ф1000	JWSG-120/38	1350	704
JWGXPE-1200	ф630-ф1200	JWSG-75/38	1400	817
JWGXPE-1600	ф900-ф1600	JWSG-120/38, JWSG-90/38	1800	1350

Product Applications of Multi-layer Single-layer HDPE Water Supply Pipe/Gas Pipe Energy-Saving and High-Speed Extrusion Line

The pipelines produced by this line offer moderate rigidity, strength, excellent flexibility, resistance to creep, environmental stress cracking, and superior hot melt performance. As a result, these pipes are the ideal choice for urban gas transmission systems and outdoor water supply pipes.
