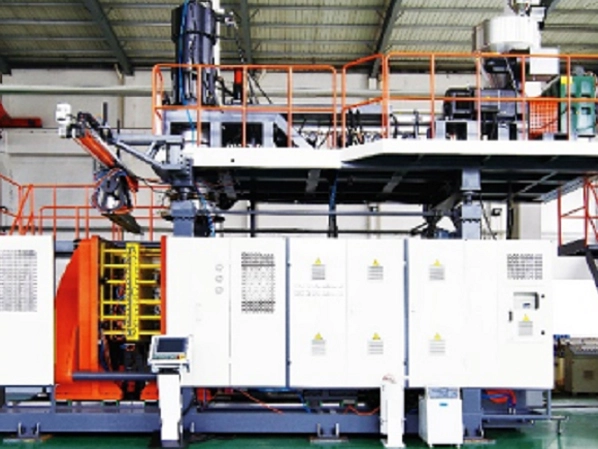

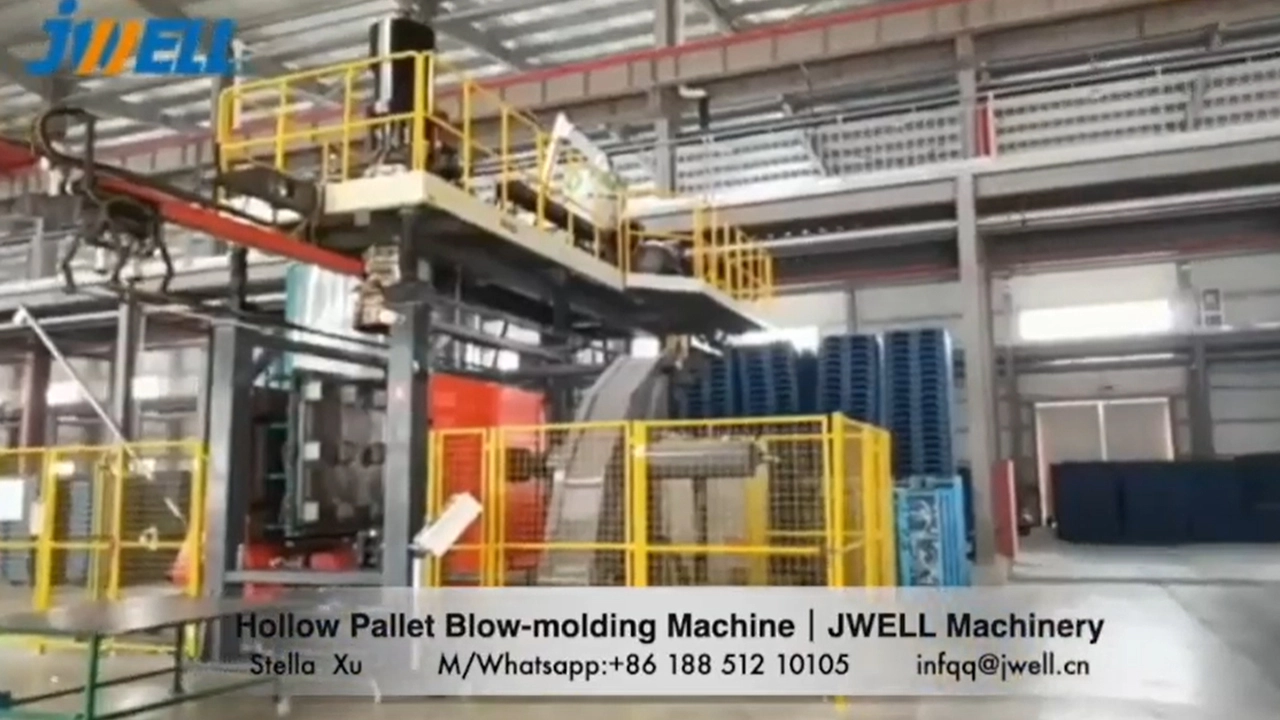

JWELL Machinery's JWZ-BM500/1000 Model is designed for Pallet Blow Molding Machines. It features a high plasticizing extruder, a parison controller imported from Europe, and an efficient operation system. It offers high output, low energy consumption, a high level of automation, and easy operation.

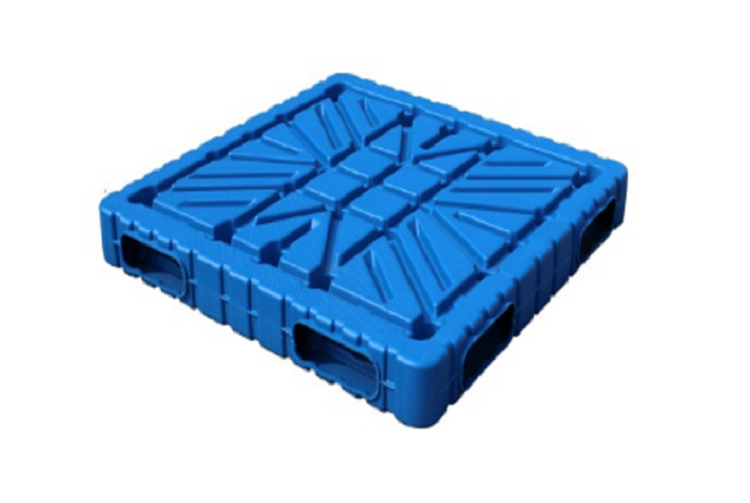

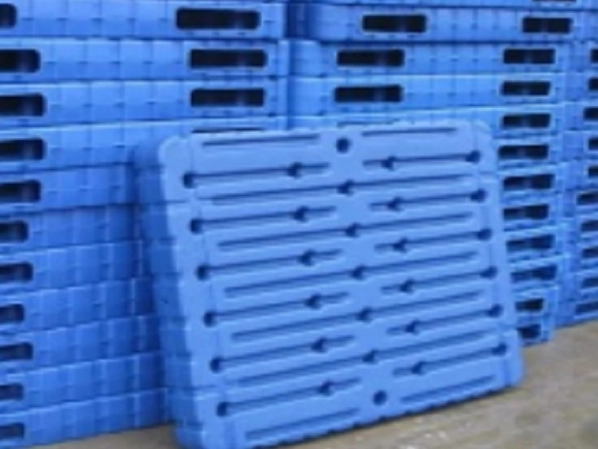

The pallets produced by our automatic pallet making machine are robust and rigid. They are designed with anti-skid points on both sides to ensure safe operation during transportation, loading, unloading, and stacking. When loaded, the pallets can be stacked flat in three layers for storage, and when empty, they can be stacked stably in multiple layers.
The blow molding pallets are characterized by their high strength, stiffness, toughness, and long service life. They also have strong bending strength. These extrusion blow molding pallets are currently the lightest in the world and can be used normally in temperatures ranging from 60℃ to -40℃. They can last for more than 5 years under normal conditions and 2 years in harsh environments. Their lifespan is 5-7 times longer than wooden pallets and 2-3 times longer than steel pallets.
Get in touch with us for the price of the pallet making machine!
| Technical parameters | |||
| Model | Unit | BM500F | BM1000F |
| Max product volume | L | 500 | 1000 |
| Dry cycle | Pc/h | 250 | 155 |
| Die head structure | Accumulating type | ||
| Main screw diameter | mm | 120/135 | 120*2 |
| Max plasticizing capacity(PE) | kg/h | 400 | 700 |
| Driving motor | KW | 132/160 | 132*2 |
| Accumulating volume | L | 45/60 | 75/90 |
| Oil pump motor power | KW | 40 | 55 |
| Claming force | KN | 1300 | 1800 |
| Max space between platen | mm | 950-2000 | 1000-2700 |
| Platen size W*H | mm | 1400*1800 | 1900*2300 |
| Max moild size | mm | 1200*1920 | 1750*2200 |
| Heating power of die head | KW | 50 | 65 |
| Machine dimension L*W*H | M | 10.5*8.2*6.5 | 14*12*8.5 |
| Machine weight | T | 45 | 70 |
| Total power | KW | 325 | 460 |
The Screw & Barrel component uses the Jinhailuo brand, which has been China's leading screw since 1978.
The Parison Control System utilizes the MOOG III 200 point parison control system, ensuring perfect control over product weight and thickness.
Optional features include bottom sealing, product ejection, and core-pulling movement elements.
The machine employs a high output extrusion system and an accumulating die head.
The Hydraulic Servo control system is known for its quick response and energy-saving characteristics.

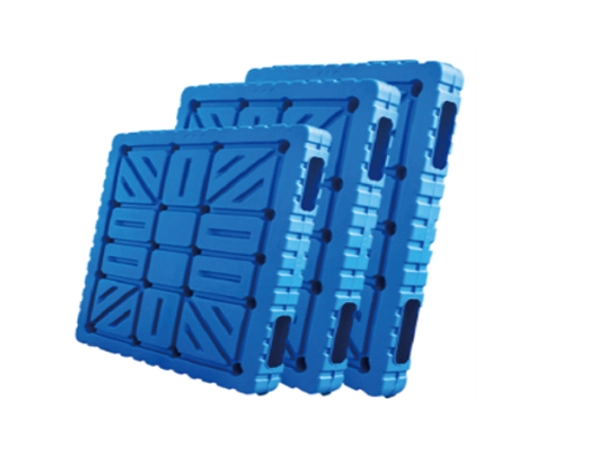

The plastic pallet making machine is versatile and can produce a variety of pallets such as:
Nine Foot Plastic Pallets
Double-sided Pallets
Plastic Racking
Plastic Pallets
Plastic Trays
The plastic pallets produced by this machine are known for their high load-bearing capacity and durability. They are commonly used in various sectors like shopping malls, supermarkets, logistics, and warehousing for tasks like flat turnover and warehouse stocking.
Blow molding pallets are increasingly becoming the preferred choice over wooden and injection pallets. They are gaining traction in various industries including petrochemical, tobacco, food, medicine, and transportation. The market potential for blow molding pallets is substantial.
