Fully Drawn Yarn, or PET/PA6/FDY, is a type of yarn that is highly oriented and has medium crystallinity. This is achieved by using a PET/PA6/FDY spinning machine to incorporate a stretching effect during the spinning process. PET/PA6/FDY is typically made from chemical fiber filaments, such as polyester and nylon.
The fabric made from FDY is soft and smooth to the touch, making it ideal for creating silk-like fabrics. It is widely used in the production of clothing and home textiles. The manufacturing process of PET/PA6/FDY yarn involves low-speed spinning, high-speed stretching, and winding, all of which are carried out on combined spinning and stretching machines. This production line is cost-effective and produces high-quality products with few breaks in the yarn and excellent dyeing uniformity.
| Item | Specification |
| Place of origin | China |
| Brand name | JWELL |
| Model number | PET FDY |
| Certification | CE ISO |
| Minimum order quantity | 1 SET |
| Packaging details | Wooden pallet packing |
| Delivery time | 90days |
| Payment terms | TT. LC |

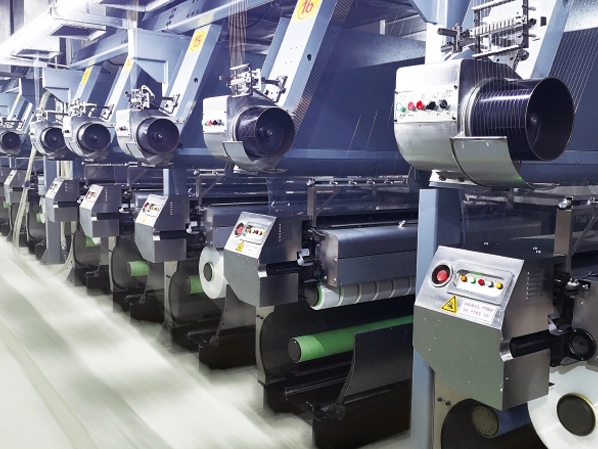

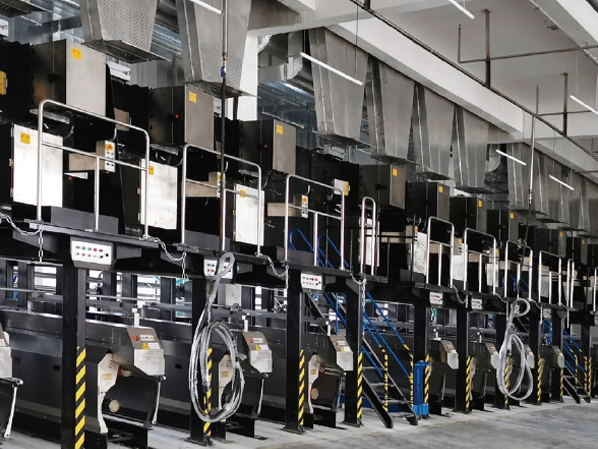

The FDY Yarn Spinning Machine, which includes a PP FDY spinning machine device, consists of several components: a Quenching Chamber, a Yarn Duct, a primary heat roller, a secondary godet roller, and an Auto-winder.
An oiling corridor is added above the machine, and the yarn guide and spindle are moved in front of the first heating godet roller by using an extension rod. This action shifts the spinning center line outward. Simultaneously, the first heat roller and the second godet roller are kept in place. The yarn wraps around these rollers about four to five times, further moving the spinning center line. After this, the tow enters the winding head, enabling the winding process to occur.
The garments we wear today are crafted from a variety of materials and textiles, and each fabric gives a unique look and feel to the finished product. Polyester filament, produced by polyester FDY spinning machines, is one such fabric.
Apparel: Polyester filament is traditionally used to mimic silk and is utilized in the production of women's blouses, outerwear for both men and women, skirts, sleepwear, and silk scarves.
Bedding: It is also used in the creation of comforters, pillow covers, bed sheets, bed covers, mosquito nets, table cloths, and stuffing for pillows and cushions.
Home Decor: Polyester filament is used in the manufacture of sofa covers, upholstery, curtain material, window screen fabric, wall coverings, carpets, raincoats, umbrella fabric, and fabric for car interiors.
Industrial Products: It is also used in the production of sewing threads, cords, conveyor belts, canvases, geotextiles, filter fabrics, tents, nets, and ropes.
Jwell machinery can be used for PET recycle bottle flakes, PET virgin chips, PET recycle chips.
Yes. The PET FDY line equip with JWELL Auto-Winder.
Chinese first screw & barrel is made by JWELL since 1978, more than 40 years experience.
