Origin: China
Certifications: ISO, CE, UL, TUV
Electrical Components: Siemens, Schneider, OMRON, CELDUC, ABB, etc.
Mechanical Components: All manufactured by Jwell, with strict quality control
High quality
High capacity
Global after-sales support (300 engineers)
Over 30 years of manufacturing experience
Fully self-produced mechanical components, ensuring quality control

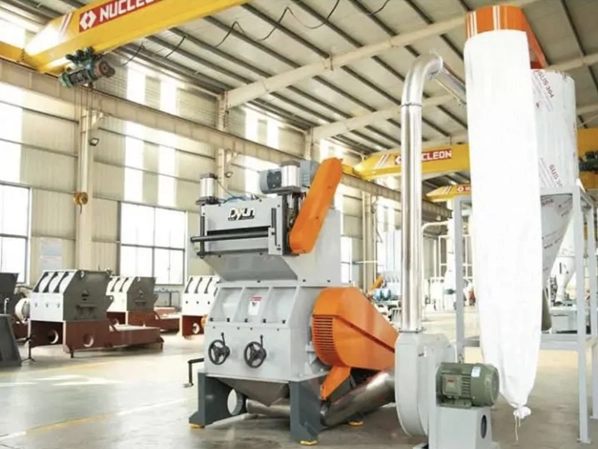

This plastic crusher is designed to improve production efficiency compared to conventional crushers. It features a set of traction devices, two sets of pressure rollers, and air-pressure opening and closing. The linear speed reaches 30m/min, enhancing overall productivity. The main shaft is made from high-quality steel, balanced dynamically and statically. The "V"-shaped cutting technology and box water cooling system prevent material overheating and sticking in the crusher cavity. The tool rest is optimized to distribute force evenly across the claw knives, increasing the cutting efficiency of each blade. This design is especially effective for crushing thick, hard, and block materials, minimizing tool wear. Additionally, a complete aggregate suction unit and dust separation device can be provided upon request for easier operation.

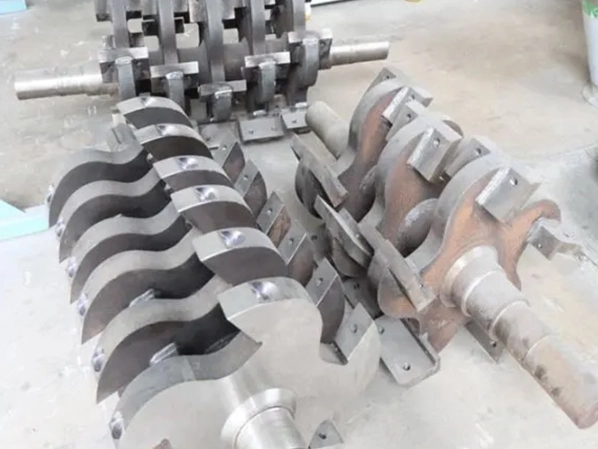

Customers can choose different knife roller structures to suit their material-crushing needs, maximizing crushing capacity and quality while extending equipment lifespan.
The crusher box offers three opening and closing options: manual hinge, electric screw, and hydraulic cylinder, allowing for customer flexibility.
Knife blades are available in various materials such as Cr12MoV (D1), Cr12Mo1V (SKD11), Cr12Mo1V1 (D2), and DC53, making them suitable for different materials.
The feeding hopper, cutter, and filter are easily separable for convenient opening and cleaning.
The machine is built with high-hardness steel templates, ensuring durability and stability.
High quality, capacity, and stability, backed by worldwide after-sales service and over 30 years of development experience.
Model | Feed Size (mm) | Main Motor Power (KW) | Haul Off Power (KW) | Rotor Effective Width (mm) | Output (kg/h) |
DYPS-P 1000 | 960x300 | 37-45 | 4 | 1000 | 400 |
DYPS-P 1200 | 1160x350 | 45-55 | 5.5 | 1200 | 500 |
The DYPS-P series crusher is designed for the recycling and crushing of wide PP/ABS/PMMA sheets, plates, and foamed coils with a thickness range of 0.2 to 3mm.
