Origin: China
Certifications: ISO, CE, UL, TUV
Electrical Components: Siemens, Schneider, OMRON, CELDUC, ABB, etc.
Mechanical Components: All manufactured by Jwell, with strict quality control
High quality
High capacity
Global after-sales support (300 engineers)
Over 30 years of manufacturing experience
Fully self-produced mechanical components, ensuring quality control
Belt Conveyor: The PVC belt material is supported by a carbon steel bracket, and a metal detector is integrated into the conveyor belt.

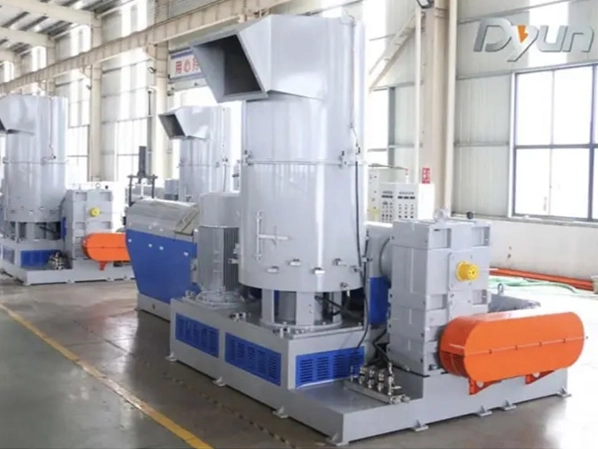

Compacting Machine: The parts in contact with raw materials are made of stainless steel, while other parts are made from carbon steel. It includes a fixed knife, a movable knife, a temperature measurement system, cooling system, and cooling fan.
Single-Screw Extruder: Features a high-torque, low-noise reduction box with an external cooling circulation system, a nitrided 38CrMoAlA1 screw, and a barrel fan cooling system, all controlled by a temperature controller.

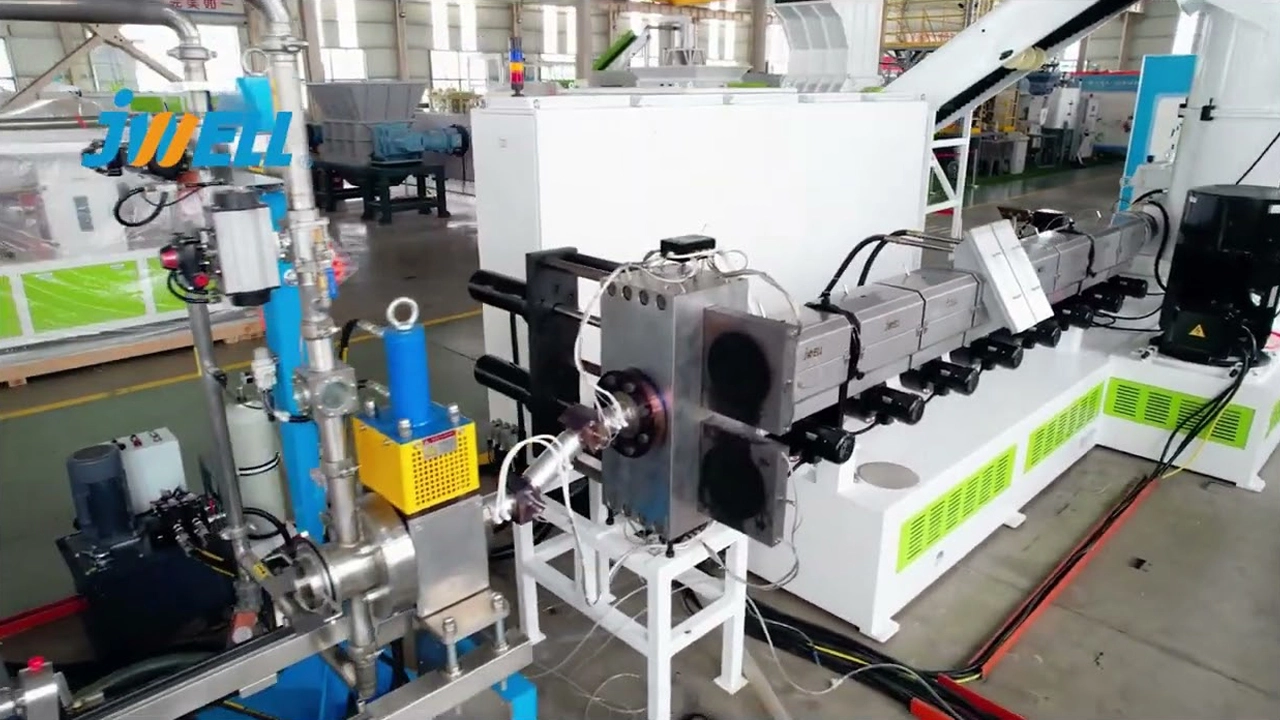

Hydraulic Screen Changing System: Double-station, non-stop screen changing system that prevents material leakage, with a screen changing time of ≤ 2 seconds.
Vertical Water Ring Die Surface Cutting System: This water ring pelletizing system features frequency-controlled cutting speeds and includes components like the cutting head, diverter cone, water ring cover, tool holder, cutterhead, and cutter bar.
Chute Material: The bracket is made of Q235 welded material, while the rest of the system is stainless steel.
Centrifugal Dryer Material: The bracket is Q235, and other parts are made of stainless steel.
Vibrating Screen Material: Double-layer stainless steel mesh.
Air Supply System: Composed of stainless steel pipe tees, fans, and heaters.
Silo Material: Stainless steel.
Model | Screw Diameter (mm) | L/D | Main Motor Power (KW) | Screw Speed (RPM) | Output Capacity (kg/h) |
JWP90 | 90 | 36/1 | 75-90 | 20-150 | 200-300 |
JWP120 | 120 | 36/1 | 110-132 | 20-120 | 300-400 |
JWP150 | 150 | 36/1 | 160-200 | 20-100 | 400-500 |
JWP180 | 180 | 36/1 | 215-315 | 20-100 | 600-800 |

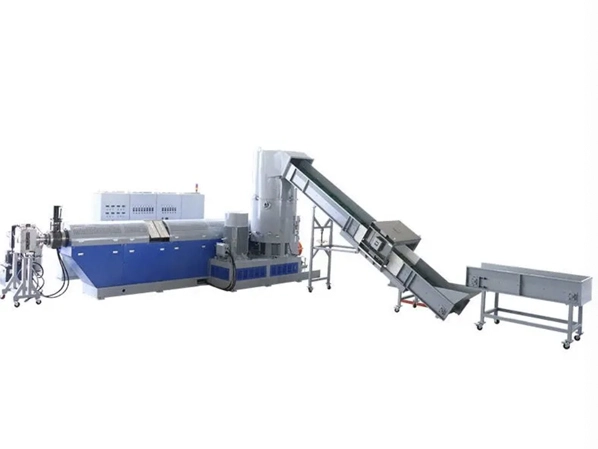

The Dyun Plastic Film Integrated Pelletizing Line features a specially designed screw and diverse configurations, making it ideal for the recycling of various dry film plastics, such as PP, PE, BOPP, BOPET, BOPA, PA66, and more.

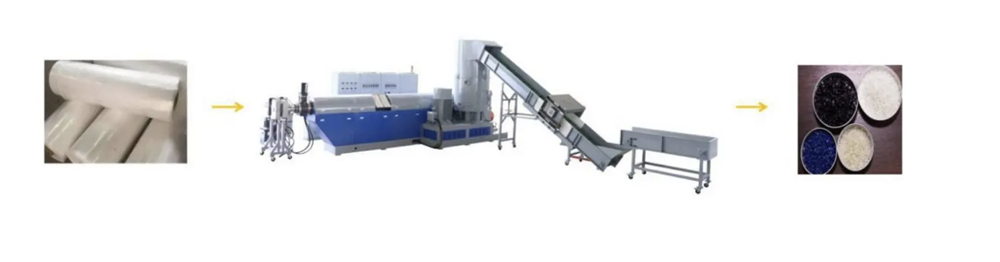

This integrated line combines crushing, compacting, plasticizing, and pelletizing in a single step, offering a highly efficient solution for processing plastic films, raffias, filaments, bags, woven bags, and foaming materials. The system produces high-quality pellets that can be used directly in production lines for blown films, tube extrusion, and injection molding. It also processes a wide range of plastic materials, including PE, PP, PS, ABS, XPS, EPS, and PVB.
The system is equipped with durable granulators that quickly and efficiently cut plastic streams into uniform flakes or regrinds. These granulators are perfect for recycling plastic bottles, films, and small rigid plastics.
With the Dyun Plastic Film Integrated Pelletizing Line, users can achieve higher output and lower energy consumption, providing significant savings in both time and costs, making it the ultimate solution for plastic recycling and granulation.
