The plastic film cleaning recovery production line is primarily designed for recycling plastic packaging films, agricultural films, large shaft PE/PP plastics, mixed PE/PP plastic waste, waste PP woven bags, plastic bags, and used agricultural film, among others.

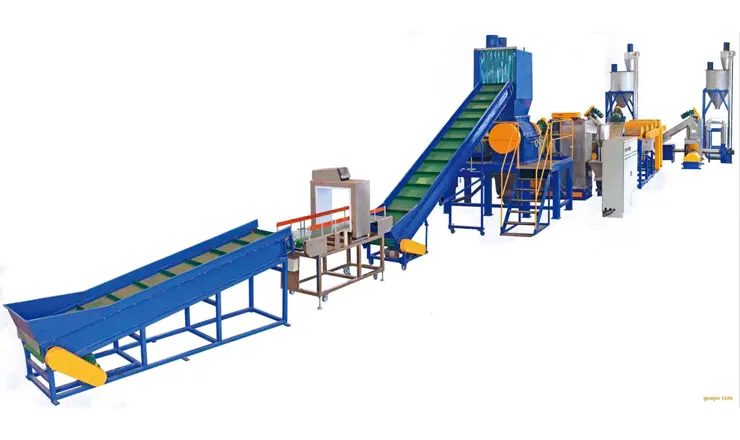

This cleaning recovery production line integrates screening, breaking, cleaning, and drying processes. It is an essential tool for regenerating waste plastic film/woven bags, offering high production efficiency and effective cleaning. The moisture content of the dried film is less than 5%.
The plastic film recycling washing line, produced by extrusion line manufacturers, is characterized by its simple structure, ease of operation, large capacity, low energy consumption, and safety and reliability.
Line Type | Water Consumption) | Output(kg/h) | detergent | Power(kw) |
DY-300 | 0.5T/h | 200-300 | 8kg/h | 100 |
DY-500 | 1.0T/h | 400-500 | 12kg/h | 130 |
DY-1000 | 1.5T/h | 800-1000 | 14kg/h | 250 |

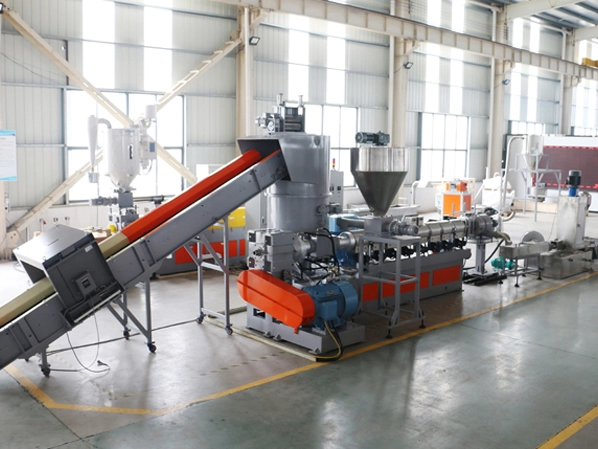

This pelletizing extruder, with its unique screw design and various configurations, is ideal for recycling dry films of materials such as PP, PE, BOPP, BOPET, BOPA, PA66, and more. The gearbox is designed to produce high torque, resulting in low noise levels and stable operation.
The screw and barrel have undergone special treatment to enhance their durability. This also improves their plasticization and mixing capabilities, leading to high production capacity. The extruder is designed with a vacuum vent that can expel vapor or gas during production, ensuring more stable output and more uniform pellets.
Line Type | Screw Dia | Output(kg/h) | Screw Speed （rpm） | Power(kw) |
JWP90 | 90 | 200-300 | 20-150 | 75, 90 |
JWP120 | 120 | 300-400 | 20-120 | 110, 132 |
JWP150 | 150 | 400-500 | 20-100 | 160, 200 |
JWP180 | 180 | 600-800 | 20-100 | 250, 315 |
Unique reverse discharge mode and scientifically designed stew wheel combination ensure uniformity.
Flat wheel leaf design, coupled with the efficient crushing of the crusher, prevents long materials and material entanglement.
The bottom screw drainage design makes daily maintenance more convenient.
The transmission is designed externally and includes a protective cover. The groove is elevated to prevent water splashing, ensuring cleanliness.
A specialized, floating universal rinsing tank can be designed to meet customer needs and save investment.
Special blade arrangement ensures uniform production, sufficient friction cleaning, high water utilization, and effective removal of paper labels and other impurities.
The frame structure housing is stable and produces minimal vibration.
High-speed bearings, stainless steel main shafts and blades, dynamically balanced, integrated dewatering machines and fan design, eliminate the need for an additional fan, saving energy and preventing blockages.
Automatic cleaning device, driven by air pressure, saves labor.
A slim groove is set at the bottom.

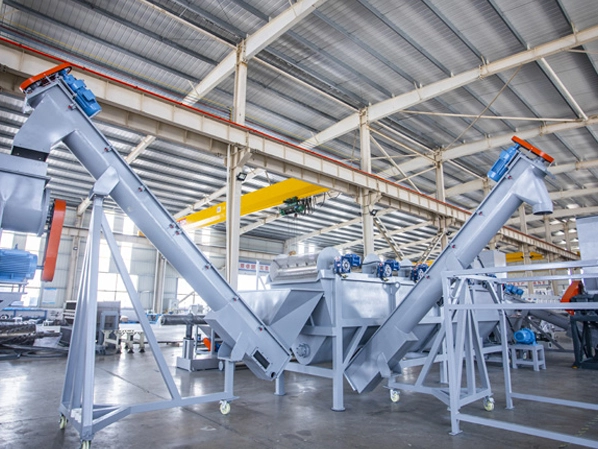

The complete plastic recycling washing line operates from start to finish, systematically cleaning waste plastic products, agricultural films, packaging materials, or hard plastics. The plastic recovery cleaning equipment is ideal for cleaning, dust removal, and drying, and is designed for processing PP, PE, and similar materials with stable performance. The treated materials meet various standards with a high pass rate.
Furthermore, for all types of films, we can use a single-step granulation method, specifically the Three Machine Integrated Pelletizing Machine. This machine uses a unique screw design and different configurations, making it suitable for producing various dry film plastics such as PP, PE, BOPP, BOPET, BOPA, PA66, and others.
If the film is recovered, it is mainly to see the raw material, the film is thin, the state of the raw material, the dirty, whether or not the oil contains metal impurities, etc., the size of the yield will also have a certain effect on the selection of the equipment, and the simple configuration is: Belt conveyors,
Tear machine, rinse tank, (hot cleaning), rinse tank, squeezing machine, back can be connected to granulation.
Regeneration for producing PP, PE, BOPP, BOPET, BOPA, PA66 and other dry film plastic.
PE recycled pellets, PE recycled pellets can be used to produce agricultural membranes, can also be used to make chemical fertilizer packages, garbage bags, agricultural regeneration water pipes, fences, trees, pots, buckets, trash, geometric materials, etc.
