Origin: China
Certification: ISO, CE, UL, TUV
Electrical Components: Siemens, Schneider, OMRON, CELDUC, ABB, etc.
Mechanical Parts: Fully manufactured by Jwell, ensuring quality control.
High quality
High capacity
Global after-sales service (300 engineers)
Over 30 years of manufacturing experience
Self-produced mechanical components for quality assurance
Feeding Conveyor to the Shredder
Equipped with a load-related control device to prevent overfeeding of the shredder. An optional metal detector can be added to detect metallic contaminants, protecting the shredder. The speed of the belt conveyor is adjustable via an inverter.
L-Type Belt Conveyor
Continuously washes with clean water.
3D mixing function for efficient material blending.
Extended retention time of approximately 30 minutes for better washing.
Independent water treatment system.
Can be heated for pre-washing with hot water.
Shredder
35% more space inside the cutting chamber for increased efficiency.
Faster ram movement with variable speed.
More compact than traditional shredders with horizontal rams.
Enclosed cutting chamber prevents materials from flying out.

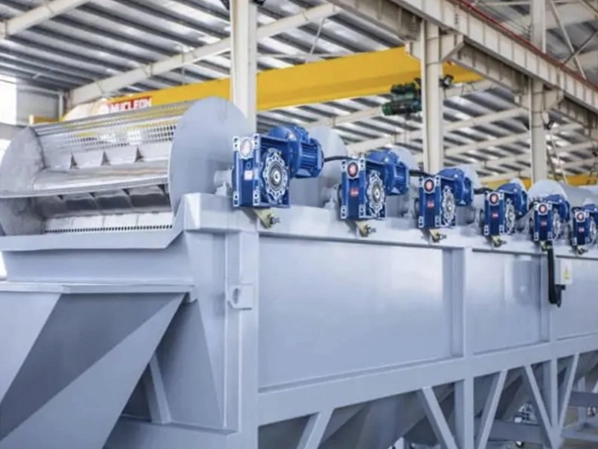

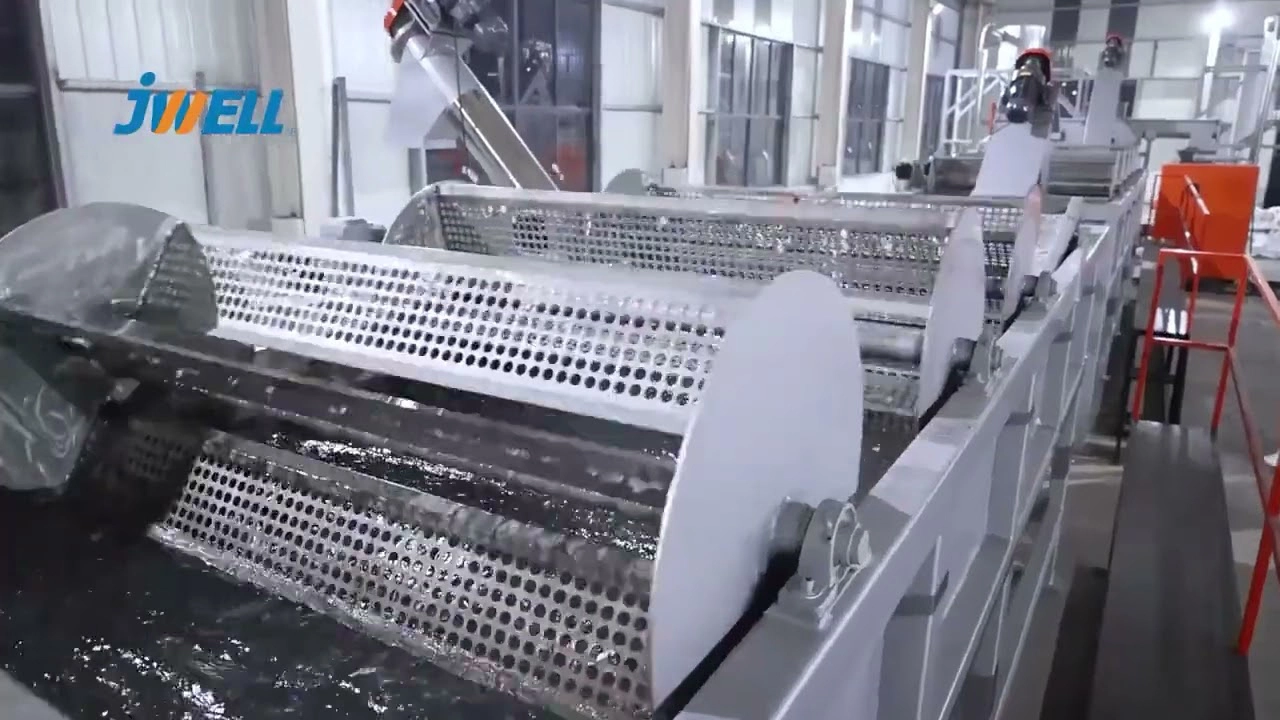

Floating Washer
Separates contaminants or other plastics with gravity > 1 g/cm³ from PE/PP flakes.
Equipped with screw-in and screw-out functionality.
Special inner paddle design ensures efficient sedimentation of heavy impurities.
Constructed with stainless steel SUS304 for durability.
Features a pneumatic water in-feed valve and automatic level control via an electronic sensor.
Drying System
Depending on the material, we offer various drying options, including a squeezer, centrifugal dryer, or pipeline dryer, based on customer requirements. For soft materials like films, we use a squeezer or centrifugal dryer, maintaining moisture levels within 5-8%. For rigid plastics, a centrifugal dryer or pipeline dryer is used, ensuring moisture content is less than 1%.
Storage Silo
A buffer silo ensures continuous operation and stable feeding for downstream extrusion pelletizing lines. The silo's special design prevents blockages, and a cyclone device at the top removes dust efficiently.
