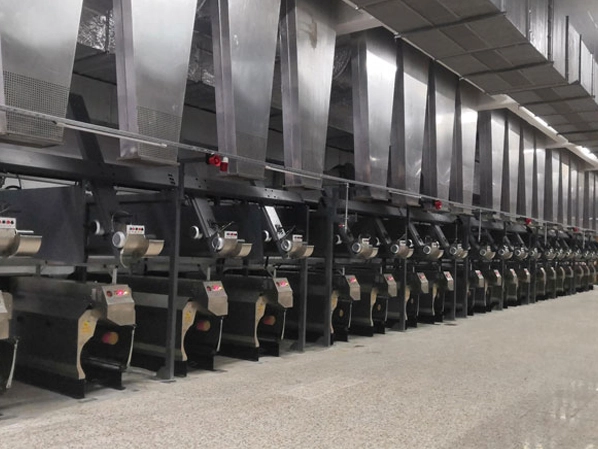

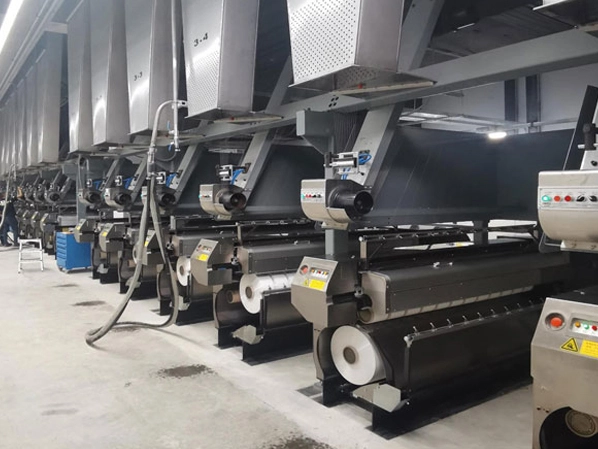

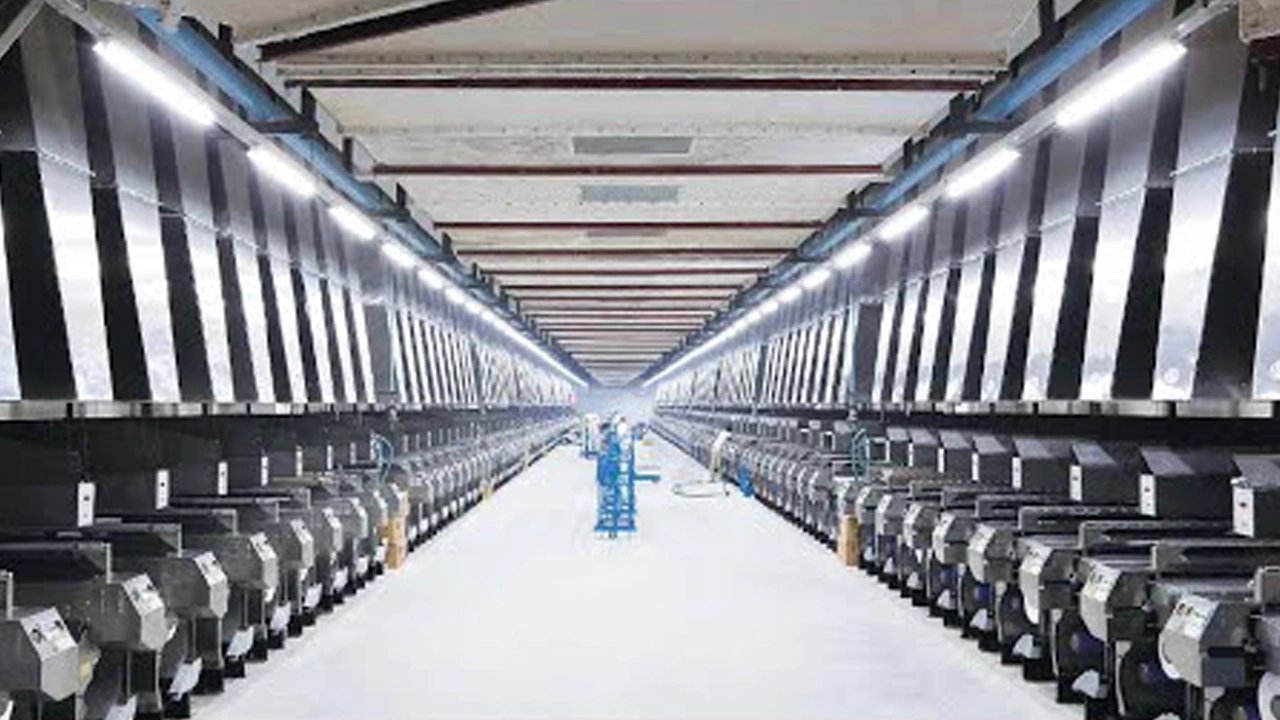

The POY spinning machine features a newly designed spin beam that reduces energy consumption by 30% compared to conventional models.
It utilizes bottom-mounted spin packs that improve melt flow, ensure better temperature consistency, and require less manpower.
The updated quenching system delivers smoother air blowing, enhancing yarn evenness.
Adjustable air-blowing area and air volume allow for more precise control over the spinning process.
Fully automatic winders ensure precise winding, offering a higher success rate during changeovers and excellent unwinding of bottom layer yarn and tail yarn shifting.
The POY spinning machine, suitable for polyester, PA6, and Nylon POY, comes with a guide roller featuring an individual control system (with an optional movable godet system).
The process for manufacturing Partially Oriented Yarn (POY) involves producing yarn that is partially oriented, commonly used in the textile industry for various applications.
Material: PET, PA6
Denier (D) Range: 50-600 for PET, 40-70 for PA6
Process Speed: 3200m/min for PET, 4300m/min for PA6
Number of Positions: 6 / 8 / 10 / 12 positions (customizable)
Number of Ends: 8 / 10 / 12 ends (customizable)
Winders: Automatic
Grade Class Rate: Grade class rate ≥98%, First class rate ≥95%, Full package rate ≥90%
| Item | Specification |
| Place of Origin | China |
| Brand Name | JWELL |
| Model Number | PET, PA6 |
| Certification | CE, ISO |
| Minimum Order Quantity | 1 Set |
| Packaging Details | Wooden pallet packaging |
| Delivery Time | 90 days |
| Payment Terms | TT, LC |

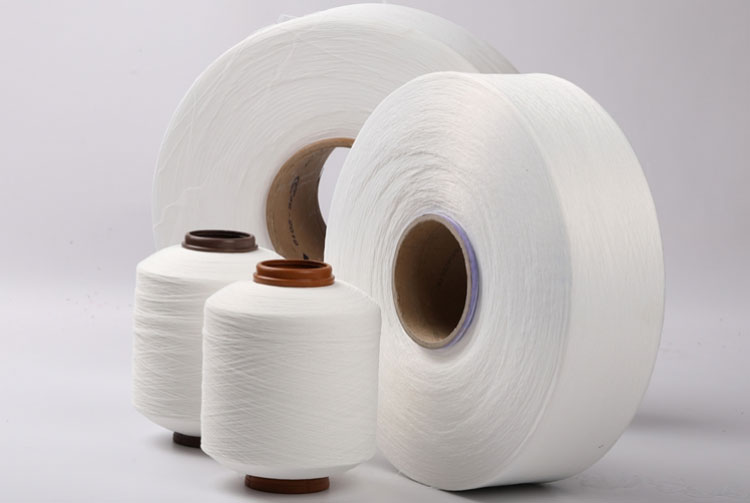

Filament is a continuous thread made by processing natural or synthetic fibers, without undergoing a cutting process. JWELL machines use POY (Partially Oriented Yarn) as the raw material, which is then stretched and false-twisted to create DRAW TEXTURED YARN (DTY). This yarn often exhibits elasticity and contractility.
POY chemical fibers are widely used in the production of clothing and industrial products. Due to their flame-retardant properties, flame-retardant polyester has numerous applications. Beyond its essential role in industrial textiles, architectural interiors, and vehicle interiors, it is also crucial in protective clothing. Flame-retardant polyester can be further enhanced to produce multi-functional products, such as those that are flame-retardant, waterproof, oil-repellent, and anti-static, to meet specific user requirements.
1. The yarn spinning equipment uses the LTM-type pin screw and domestically made continuous melt CPF, extending the service life of the spin packs.
2. Available in both top-mounted and bottom-mounted high-pressure rectangular and cup-shaped spin packs.
3. Equipped with a unique planetary spinning pump and separate finish oil pump drive in the POY spinning machine.
4. Features an Evo and cross-quench system for even and stable airflow.
5. Utilizes individually controlled imported inverters and components.
6. New adjustment GR, with imported inverters and components.
Partially oriented yarns are created by melting and extruding polyester chips. During the POY spinning process, the filaments are stretched up to five times their original size to orient the polymer, achieving the desired uniformity, strength, shrinkage, and elongation properties. As a result, POY refers to a yarn that is only partially stretched. POY is generally less strong and less uniform than fully oriented yarns (FOY). POY is mainly used for producing textured yarns and is also used in fabric weaving and warping.
