Origin: China
Certifications: ISO, CE, UL, TUV
Electrical Components: Siemens, Schneider, Omron, Celduc, ABB, etc.
Mechanical Parts: Fully produced by Jwell, ensuring complete quality control.
1. Exceptional Quality
2. High Capacity
3. Worldwide After-Sales Service (300 Engineers)
4. Over 30 Years of Manufacturing Experience
5. Fully Self-Manufactured Mechanical Parts, Ensuring Complete Quality Control

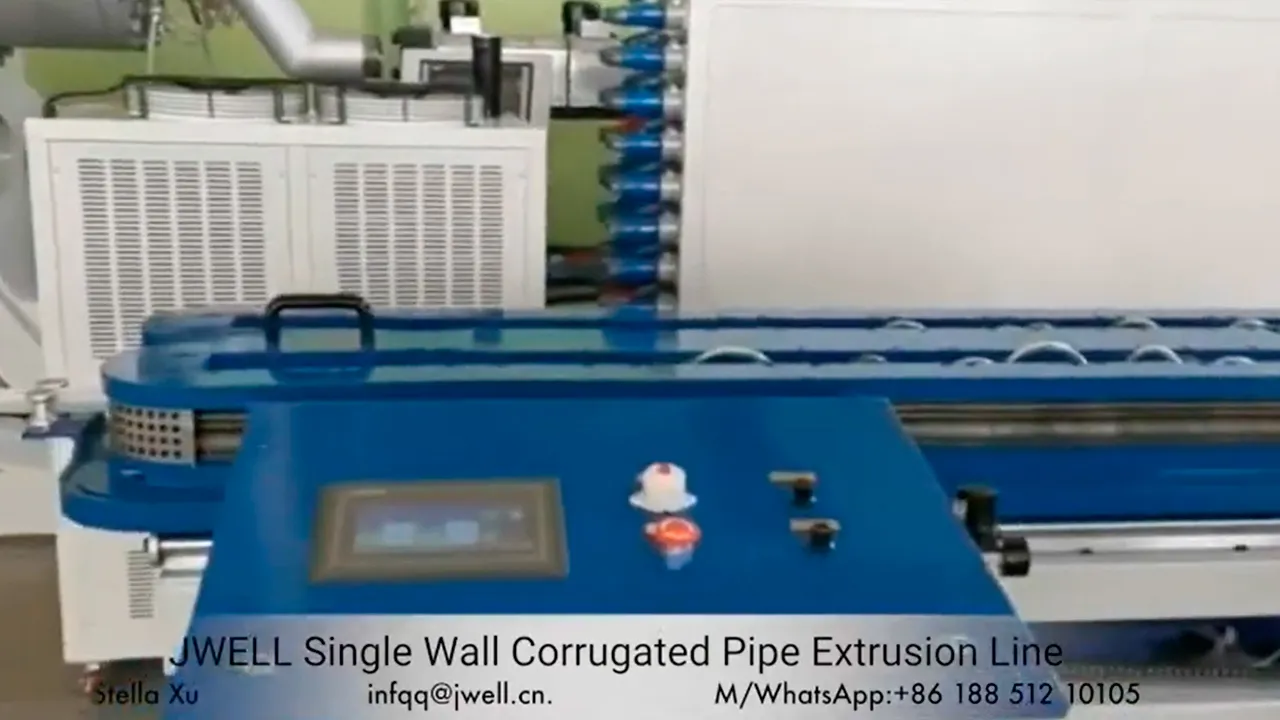

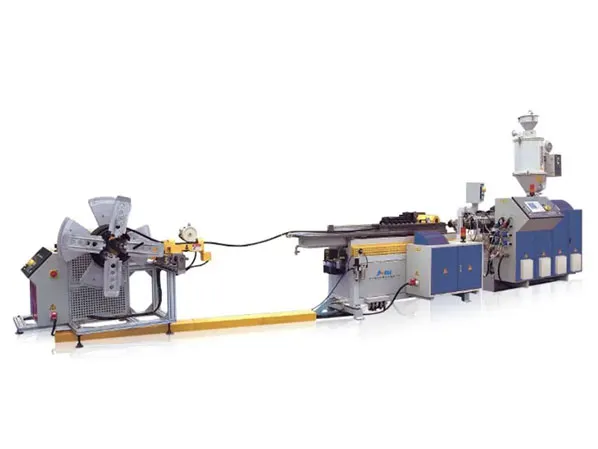

The HDPE/PP/PVC single-wall and double-wall corrugated pipe extrusion line offered by Jwell features full automation. As a leading manufacturer of corrugated pipe machines, Jwell holds several patents for its innovative designs. Our single-wall corrugated pipe machine is built for stable operation with high capacity, ensuring efficient and reliable production. Similarly, our double-wall corrugated pipe machine produces pipes with superior structural integrity, providing enhanced strength and durability.
For HDPE/PP materials, we use a high-efficiency single-screw extruder, while for PVC materials, we employ either a conical twin-screw or parallel twin-screw extruder. The horizontal corrugator is equipped with an advanced shuttle-type structure, a closed water cooling system, and on-line belling. The entire production line is controlled by a PLC computer system.
If you are interested in our corrugated pipe production line or want to inquire about the price, please feel free to contact us.
Precision Adjustment: The new corrugated pipe extrusion line features high-precision front-back adjustments, specially designed for air ventilation pipes.
Vertical Water Cooling Corrugator: This system precisely positions the mold block and is easy to change, ensuring high-quality production.
Type | JWDPG-25 | JWDPG-50 | JWDPG-63 | JWSB150 |
Screw Diameter (mm) | Φ45 | Φ65 | Φ65 | Φ75 |
L/D | 30:1 | 33:1 | 33:1 | 33:1 |
Total Power (kW) | 50 | 70 | 70 | 100 |
Pipe Specification (mm) | Φ8-Φ20 | Φ12-Φ50 | Φ12-Φ63 | Φ90-Φ150 |
Max Speed (m/min) | 25 | 15 | 10 | 5 |
This corrugated pipe extrusion line is widely used for drainage systems in various applications such as highways, railway subgrades, subways, waste landfills, tunnels, green belts, sports grounds, slope protection (especially in areas with high water content), and underground irrigation systems for agriculture and horticulture.
The production line is particularly suitable for the manufacture of small-diameter single-wall corrugated pipes made from PP, PE, or PA. The special mold allows for a one-step molding process, producing pipes with smooth surfaces and clear, uniform ripples. These pipes are commonly used in a variety of fields, including:
Wire and cable protection
Automotive interior circuit protection
Concrete piping
Agricultural and horticultural piping systems
