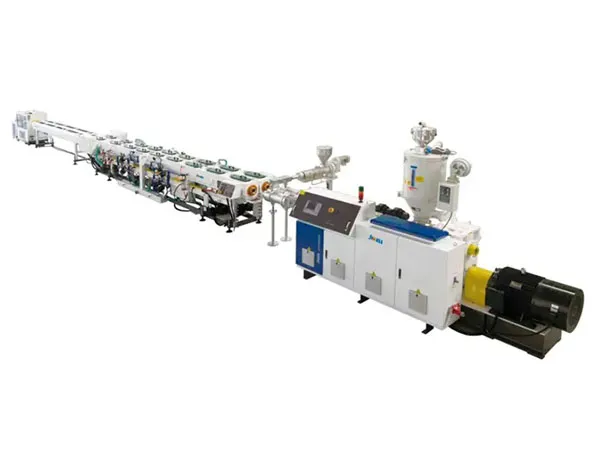

Name: PP-R, PE-RT, PE-X Cool & Hot Water Plastic Pipe Extrusion Line
Brand: Jwell Machinery

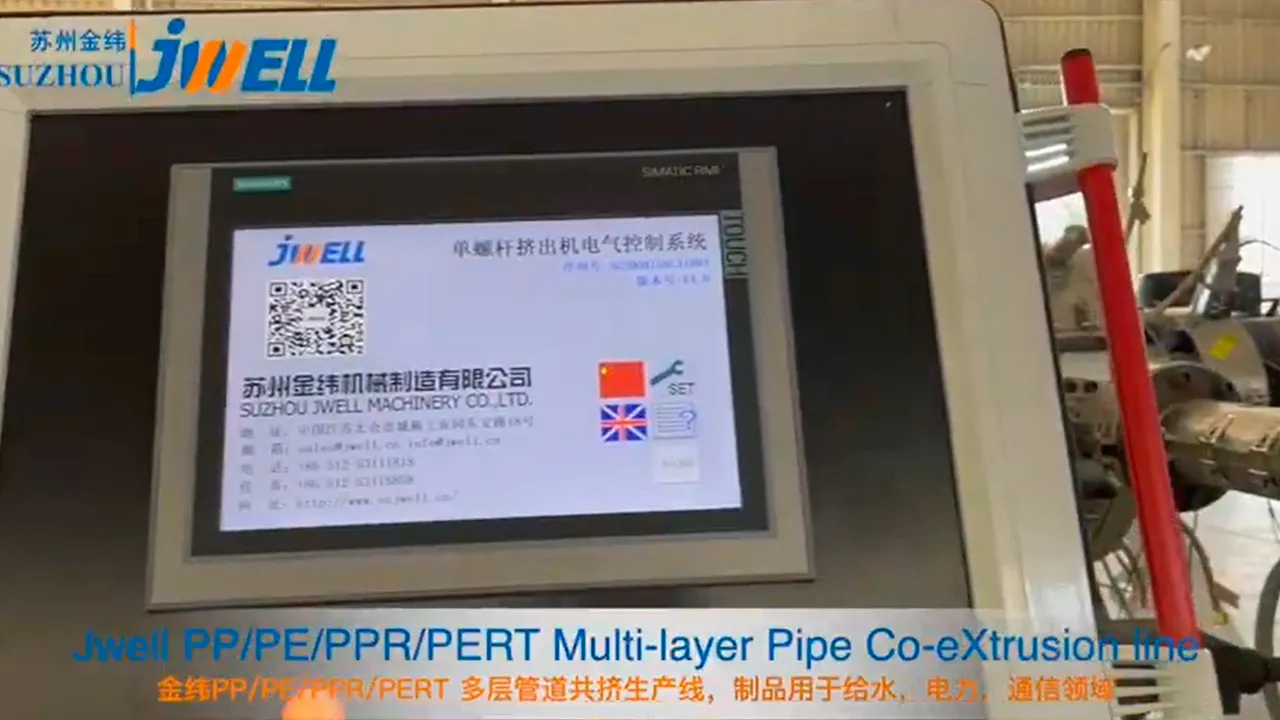

Video of PP-R, PE-RT, PE-X Cool & Hot Water Plastic Pipe Extrusion Line

Competitive Advantages of PP-R, PE-RT, PE-X Cool & Hot Water Plastic Pipe Extrusion Line

1. Superior Quality

2. High Capacity

3. Global After-Sales Support (300 Engineers)

4. Over 30 Years of Manufacturing Experience

5. Fully Self-Manufactured Mechanical Parts for Enhanced Quality Control

Machine Description of PP-R, PE-RT, PE-X Cool & Hot Water Plastic Pipe Extrusion Line

This production line is designed for the manufacturing of pipes used in water supply and radiant floor heating systems, commonly applied in residential buildings, shopping malls, hospitals, stadiums, and rural areas.

The Jwell self-manufactured production line incorporates advanced European technology, featuring a unique structure, superior configuration, high automation, and easy operation. The extruder screw is of the BM high-efficiency type, ensuring high output, excellent plasticization, and exceptional stability and reliability.

Machine Features of PP-R, PE-RT, PE-X Cool & Hot Water Plastic Pipe Extrusion Line

The PP-R, PE-RT, PE-X, and PA cool & hot water plastic pipe extrusion line offers several advanced features:

Advanced Siemens PLC Control System: This fully integrates the production line, enabling closed-loop control, seamless data analysis, energy consumption tracking, remote diagnostics, quick after-sales support, and maintenance reminders. Additionally, it uses weight control technology to maintain a narrow tolerance range for wall thickness, optimizing raw material usage.
High-Performance Screw and Barrel: The helical grooved feed barrel and BM barrier mixing screw with a 38L/D ratio ensure high output and superior pipe quality. The carbide-coated screw and bimetallic barrel offer long-lasting, efficient operation.
Energy Efficiency: The high-torque precision gearbox and AC variable frequency or permanent magnet servo motor ensure low energy consumption and sustained high output.
Optimized Mold and Calibrator: High-speed molds and multi-disc or wet calibrators guarantee excellent pipe quality during rapid production.
Frequency Conversion Vacuum Control: This unique device eliminates noise while providing energy savings and precise diameter control.
Servo Motor Traction Device: The servo motor in the traction unit offers a wide range of operation and precise synchronization. It features a digital communication interface with the extruder and is equipped with a stable, high-performance cutting knife for small-diameter pipes, as well as a chip-free double-blade cutter for larger diameters.
Co-Extrusion Capability: The production line can also support two-layer and multi-layer co-extrusion by modifying certain components.

Performance & Advantages of PP-R, PE-RT, PE-X Cool & Hot Water Plastic Pipe Extrusion Line

Efficient Output: The BM high-efficiency screw ensures fast output with excellent plasticization, while precise control of wall thickness minimizes raw material waste.
Specialized Mold Design: The tubular extrusion mold, combined with a high-speed water film sizing sleeve, ensures consistent pipe quality.
High-Speed Operation: The servo-controlled high-speed double-belt haul-off unit, along with a chipless cutter and winder, supports rapid production speeds.
Dual Pipe Extrusion: The option for dual pipe extrusion lines boosts output while requiring less factory space.

Product Parameters of PP-R, PE-RT, PE-X Cool & Hot Water Plastic Pipe Extrusion Line

Type	Pipe Specification (mm)	Extruder	Max Output (kg/h)	Total Power (kW)
JWS-PPR-63 (single)	Ø20-Ø63	JWS60x40	100–120	110
JWS-PPR-63 (double)	Ø20-Ø63	JWS60x40	200–350	150
JWS-PERT-32 (low speed)	Ø16-Ø32	JWS60x40	100–180	110
JWS-PERT-32 (high speed)	Ø16-Ø32	JWS60x40	150–250	140
JWS-PERT-32 (double)	Ø16-Ø32	JWS60x40	200–300	140
JWS-PE/PERT-63 (double)	Ø20-Ø63	JWS60x40	300–400	140

Product Applications of PP-R, PE-RT, PE-X Cool & Hot Water Plastic Pipe Extrusion Line

This line is ideal for producing pipes used in various applications, including:

Drinking Water Delivery: Suitable for both cold and hot water transport systems.
Floor Heating: Ideal for radiant floor heating in residential, commercial, and industrial settings.
Central Heating Systems: Used in both residential and industrial heating applications.
Special Applications: Including underwater networks, electrochemical corrosion protection, and chemical liquid and gas transportation systems.
