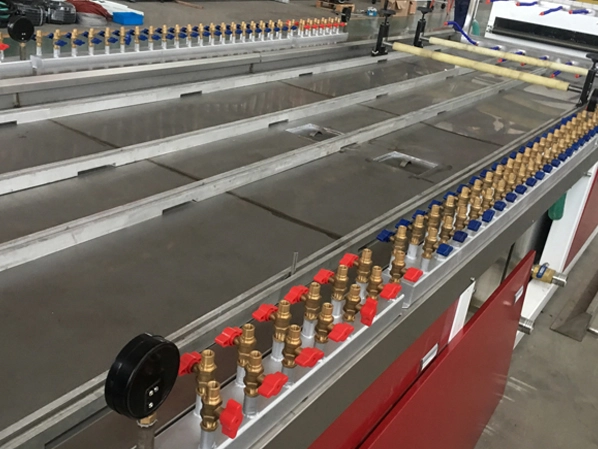

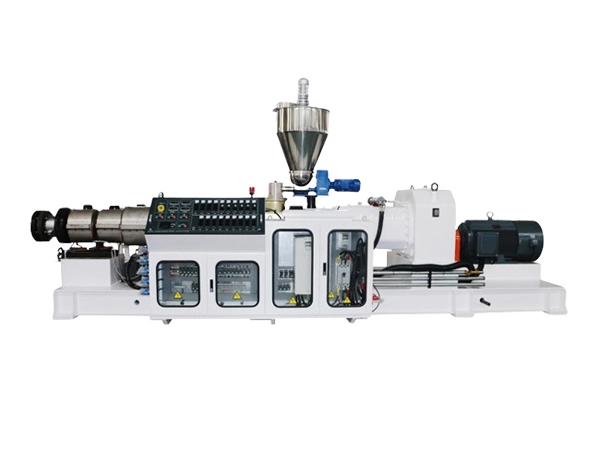

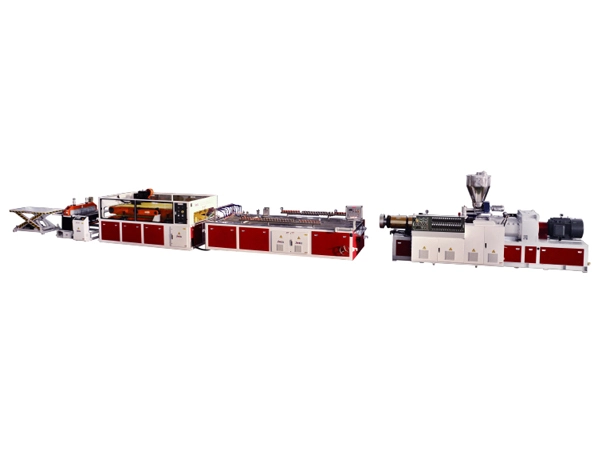

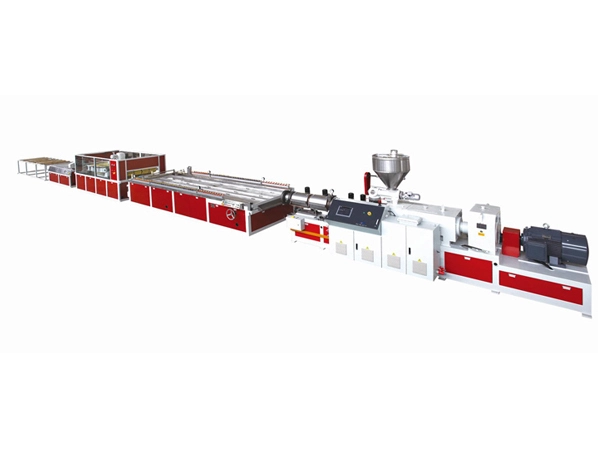

The PVC door panel/board extrusion line is capable of manufacturing PVC wood-plastic doors with widths ranging from 600 to 1200. The PVC door panel/board extrusion machine is equipped with a SJZ92/188 conical twin screw extruder, calibration, a haul-off unit, and a cutter.
Model | YF800 | YF1000 | YF1250 |
Material | PVC | PVC | PVC |
Extruder specification | SJZ80/156 | SJZ80/156 | SJZ921/88 |
Products (mm) | 800mm | 1000mm | 1250mm |
Output (kg/h) | 200-350 | 400-600 | 400-600 |
Power of main motor(Kw) | 55 | 132 | 132 |

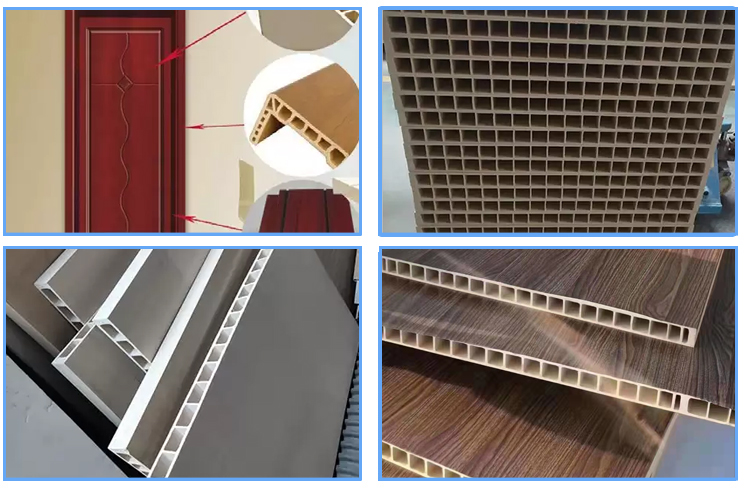

Wood plastic doors, created by the plastic profile extruder, are made by combining high molecular resin with wood ultra-molecular resin through a molding process. These doors possess the superior qualities of both wood and plastic, achieving a realistic imitation. As the production process and raw materials do not involve the use of glue, no harmful substances such as formaldehyde, benzene, ammonia, or trichlorethylene are produced. This makes these doors a new, environmentally-friendly alternative to traditional wood.
The main raw material of the wood plastic door is PVC resin and high quality wood powder. PVC resin uses medical level, and the wood powder is provided with high-quality tree type wood powder by professional wood industry. After grading, grinding, drying, envelope treatment, ensuring finished products to raw materials Quality requirements. The wood plastic door formulation is equipped with a proportion of auxiliary materials, adding stabilizers, foaming agents, modifiers, etc., and various components are mixed in strict ratio, effectively ensure product quality of foaming sheets.
There is no toxic and harmful gas and odor release during use, which is human friendly products that meet modern indoor decorative environmental protection standards.Waterproof, moisture-proof, anti-corrosion, anti-mobility, anti-insects, non-deformable wood-plastic products have dual characteristics of wood and plastics.
Wood plastic door surface can be sprayed, thermal transfer, film, etc.
