Origin: China
Certifications: ISO, CE, UL, TUV
Electrical Components: Siemens, Schneider, Omron, Celduc, ABB, etc.
Mechanical Parts: Fully manufactured by Jwell, ensuring complete quality control.
1. Superior Quality
2. High Capacity
3. Global After-Sales Support (300 Engineers)
4. Over 30 Years of Manufacturing Experience
5. Fully Self-Manufactured Mechanical Parts for Enhanced Quality Control

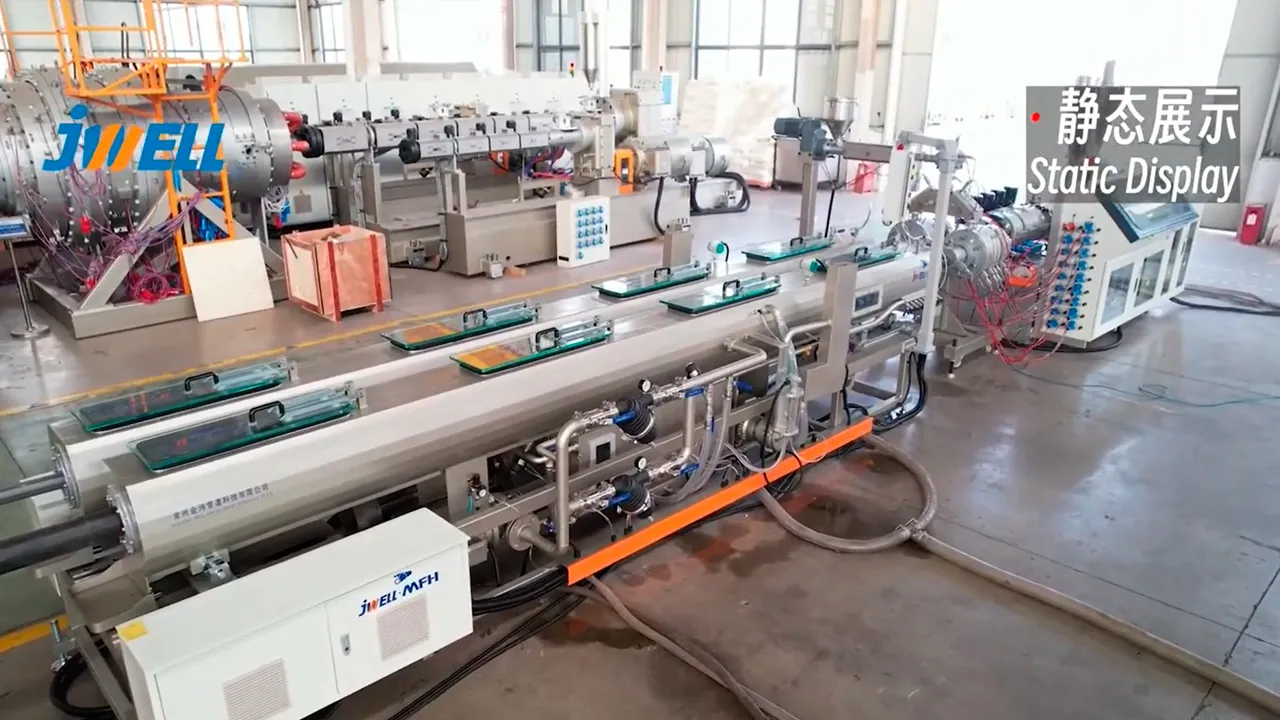

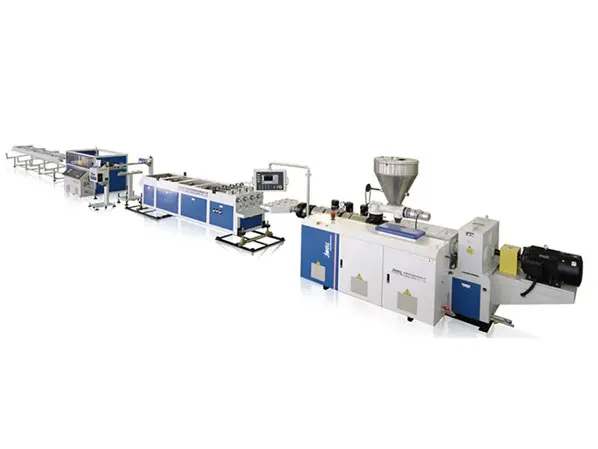

The PVC Two-Cavity and Four-Cavity Plastic Pipe Extrusion Line is specifically designed for the efficient production of small-diameter pipes at high output. The dual-strand extrusion system is especially beneficial for high-output conditions, featuring independent control circuits for each strand. This allows for adjustable speeds for each pipeline, enabling the simultaneous production of pipes with different diameters.
The four-strand extrusion line is ideal for producing pipes up to 32 mm in diameter, with a unilateral pipe speed of up to 25 m/min. The system incorporates special screw and mold designs to ensure uniform material plasticization, fast production speeds, and low energy consumption. The control system is user-friendly, reducing the technical skill required from operators and maximizing workshop space efficiency.
Dual-Extrusion Options: The line features two types of twin-screw extruders, SJZ80 and SJZ65, to cater to different pipe diameters and output requirements. The dual-pipe die ensures even material distribution and fast, efficient plasticization.
Cooling System: The high-efficiency double-vacuum cooling box is independently controllable, making adjustments easy during the production process.
Dust-Free Cutting: The cutting machine is equipped with a double-station independent control system, providing quick and precise cutting lengths. Pneumatically rotating clamps eliminate the need to change clamps manually. A chamfering device is also available as an option.
Model Type | Pipe Specification (mm) | Max. Output (kg/h) | Total Power (kw) |
JWG-PVC32 (Four Out) | Ø20–Ø32 | 250–300 | 104 |
JWG-PVC63 (Two Out) | Ø20–Ø63 | 250–300 | 105 |
JWG-PVC110 (Two Out) | Ø50–Ø110 | 300–400 | 145 |
This PVC pipe extrusion line is widely used in various industries such as:
Agricultural Water Supply and Drainage
Construction Water Supply and Drainage
Cable Laying
Crude Oil Gathering and Transportation in oil fields
Chemical Pipelines with resistance to temperature and corrosion
Hot Water Supply and Drainage
Underground Power Transmission and protection of cables in high and ultra-high voltage power systems.
