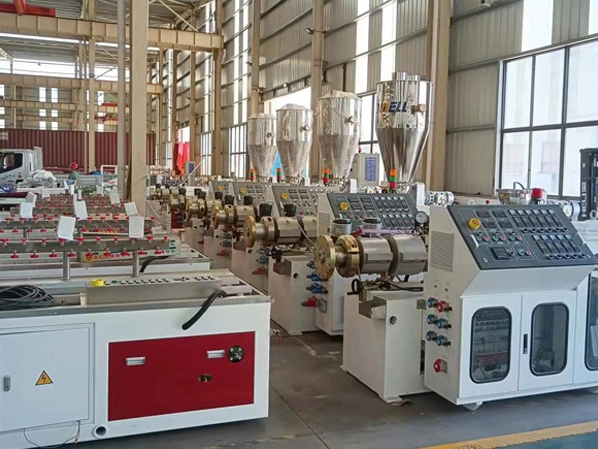

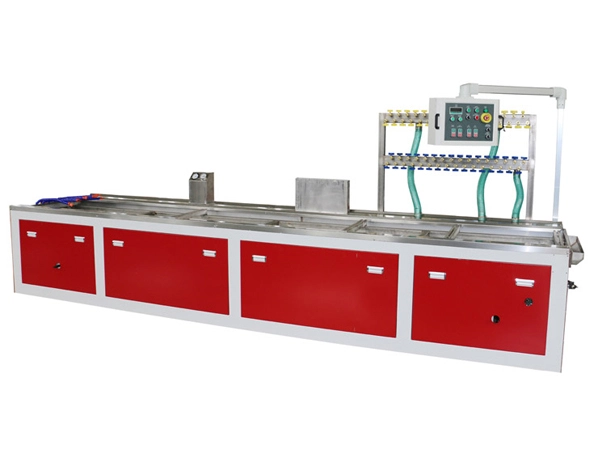

The Trunking Extrusion Line equipment is composed of a twin-screw extruder, a mold, a vacuum molding machine, a tractor, a cutter, a stacker, and a punching machine. The main machine of the plastic profile extrusion line, either the SJZ-51/105 or SJZ-65/132 conical twin-screw extruder, can perform double or quadruple extrusions. It features automatic single control double traction, double cutting machine, and double-type technology integration, allowing for flexible operation and high-efficiency production.
Model | SJ51 | SJ55 | SJ65 |
Extruder model | SJZ51/105 | SJZ55/110 | SJZ65/132 |
Main moror power(kw) | 18 | 22 | 37 |
Capacity(kg) | 80-100 | 100-150 | 180-250 |

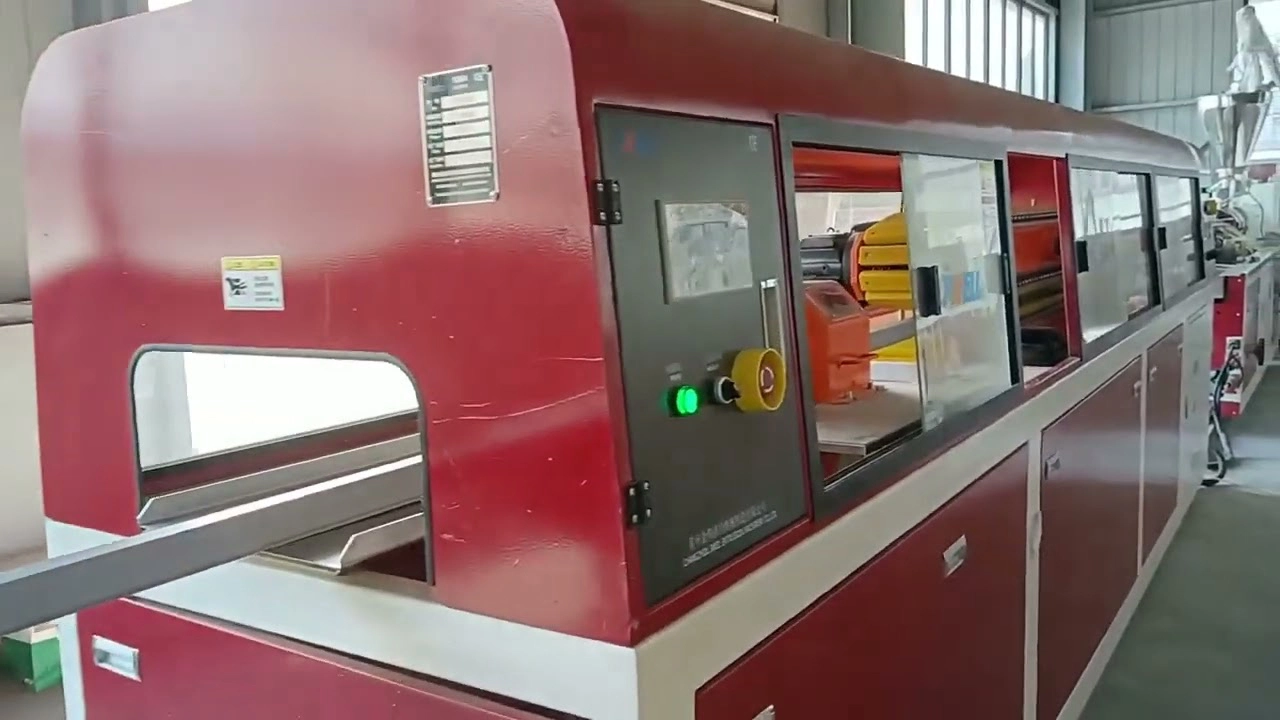

The Cable trunking extrusion line is primarily designed to produce PVC cable trunking of various sizes. The die mold comes in two types: one cavity and two cavities, and is paired with corresponding auxiliary machines to complete the trunking extrusion line.
The trunking extrusion line uses imported brand electrical appliances, with frequency inverter regulation.
The die mold can have one, two, or four cavities.
The PVC cable trunking machine is user-friendly, produces stable quality, and has a high output.
The trunking can be processed online to punch grooves and other features.

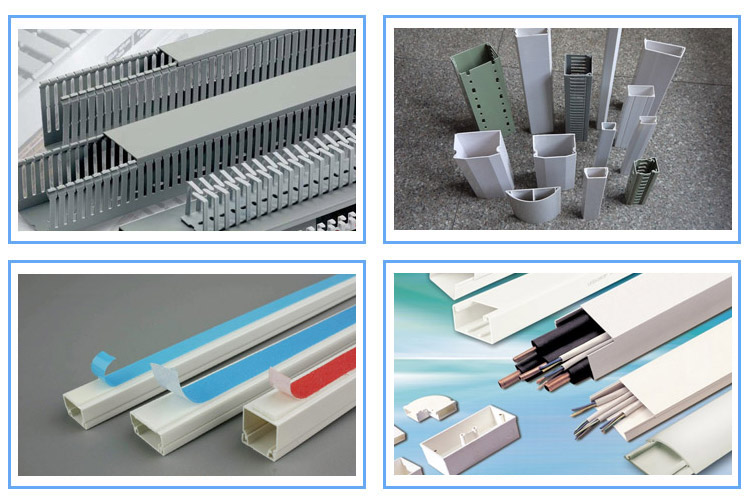

Plastic cable trunking machines produce plastic line slots, also known as linear troughs, electrical wiring tanks, or trace slots. These are made from PVC plastics, which offer insulation, arc resistance, and flame retardant self-extinguishing properties.
These are primarily used for internal wiring in electrical equipment, providing mechanical and electrical protection for wires in equipment operating at 1200V and below. The use of these products makes wiring more convenient, neat, and reliable, and makes it easier to locate, repair, and switch lines. Our company's trunking extrusion line equipment is ideal for manufacturing various models of cable slots.
The PVC cable trunking produced by trunking extrusion lines is made of PVC plastics, with insulation, arc, flame retardant self-extinguishing features.
Jwell machine on trunking extrusion line is equipped with a high-precision punching device that can machine 5-8 meters per minute.
PVC trunking specifications: 20mm * 12mm, 25mm * 12.5mm, 25mm * 25mm, 30mm * 15mm, 40mm * 20mm, 14mm * 24mm, 18mm * 38mm and so on.
