As a premier manufacturer of twin screw extruder machines, JWELL provides polymer twin-screw extruders, compounding, and granulating systems.
Our CJWA series of twin-screw extruders are classified as regular torque type, suitable for a wide range of standard modifications and certain materials with low viscosity and high MFI. These machines are highly functional, cost-effective, and stable, earning them a positive reputation.
The CJWH series of twin-screw extruders, produced by our extruder line, are categorized as high torque type. They are designed for modification, reaction, filler, extrusion molding, and more. These machines cater to the needs of mid to high-end customers with enhanced requirements for capacity and quality, offering high practicality and stability.
| Technical parameters | |||||||
Model | Diameter | L/D | Screw speed | Motor Power | Torque per shaft | Specific torque | Capacity Range |
| mm | rpm/min | KW | N.m | T/A3 | kg/hr | ||
| CJWA35 | 35.6 | 24~68 | 600 | 18.5 | 149 | 5.5 | 50~100 |
| CJWA40 | 41.1 | 24~68 | 600 | 30 | 226 | 5.5 | 75~150 |
| CJWA52 | 51.4 | 24~68 | 600 | 55 | 437 | 5.5 | 140~280 |
| CJWA65 | 62.4 | 24~68 | 600 | 110 | 773 | 5.5 | 280~560 |
| CJWA75 | 71 | 24~68 | 600 | 160 | 1188 | 5.5 | 400~800 |
| CJWA85 | 81 | 24~68 | 600 | 220 | 1714 | 5.5 | 550~1100 |
| CJWA95 | 93 | 24~68 | 600 | 350 | 2610 | 5.5 | 880~1760 |
| CJWA110 | 108 | 24~68 | 500 | 450 | 4010 | 5.5 | 1100~2200 |
| CJWA120 | 120 | 24~68 | 500 | 600 | 5500 | 5.5 | 1500~3000 |
| CJWA135 | 132 | 24~68 | 400 | 650 | 7321 | 5.5 | 1600~3200 |
The field of plastic modification is constantly evolving, encompassing processes such as rubber and plastic blending, plastic alloying, filling modification, toughening modification, glass fiber reinforcement, and reactive extrusion.
These processes involve either simple physical melting blending or physical reactive extrusion of various raw materials. The question arises whether these raw materials should be premixed or fed separately.
The design of a suitable screw element combination and parameter setting is determined based on the properties of the materials and the characteristics of the process.

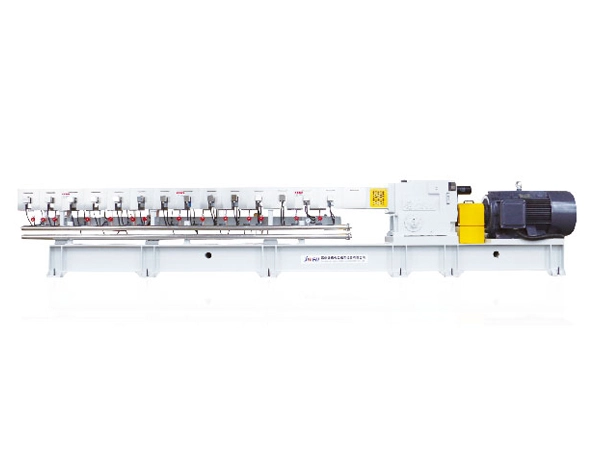

Engineering Plastics Pelletizing Line: This line primarily utilizes a twin screw compounding machine, which is suitable for polymer coloring, filling, and blending. It can also be used for modifying other mechanical, electrical, thermoplastic, optical, processability, and anti-environmental and anti-biological functions.
WPC Pelletizing Line: Our WPC co-rotating parallel twin screw pelletizing machine has been refined over the years to meet customer requirements. We can provide either a standard machine or a high-capacity, durable machine based on the customer's needs.
