Twin Screw Extruder PVC Pelletizing Machine

Competitive Advantages of Twin Screw Extruder PVC Pelletizing Machine

1. High Quality
2. Large Capacity
3. Global After-Sales Support (300 Engineers)
4. Over 30 Years of Manufacturing Experience
5. The equipment's mechanical component is entirely self-made, and its quality is controllable.

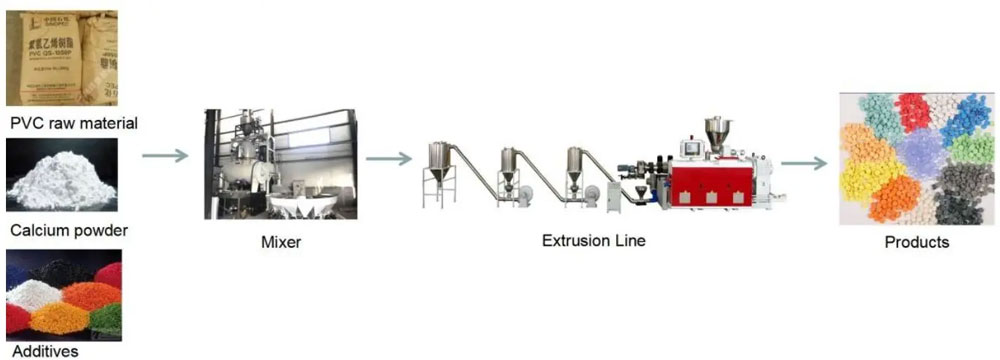

Production Process of Twin Screw Extruder PVC Pelletizing Machine

Product Description of Twin Screw Extruder PVC Pelletizing Machine

PVC pelletizer manufacturing line description:
Extruder with two screws PVC pelletizers are used for waste materials that require high processing performance, such as melting, volatilization, filtration, etc., primarily for the recycling and repelletizing of PVC trash.
PVC pelletizer machine that combines the real application conditions with cutting-edge recycling technology from around the world. This PVC pelletizer is specifically made to recycle recycled, cleaned PVC plastic flakes and scraps, including PVC pipe and sheet flakes and scraps.
PVC plastic pellets or granules that can be used to make new PVC plastic items are the end result of processing methods like feeding, heating, melting, cutting, cooling, etc.

Product Parameter of Twin Screw Extruder PVC Pelletizing Machine

PVC Counter parallel twin-screw pelletizing extrusion line

This pelletizing machine, which is made up of a counter parallel twin-screw extruder and downstream machinery, is appropriate for pelletizing both soft and rigid PVC. The pellets it produces are uniform, elegant, and solid. The die face cutter, air transfer unit, vibration separation unit, and cooling unit comprise the pelletizing downstream apparatus. excellent automation and excellent production efficiency are characteristics of this pelletizing downstream machinery.

PVC counter conical twin-screw pelletizing extrusion line

This pelletizing machine, which is made up of a counter conical twin-screw extruder and downstream machinery, can pelletize both soft and stiff PVC. The pellets it produces are uniformly solid and elegant. The die face cutter, air transfer unit, vibration separation unit, and cooling unit comprise the pelletizing downstream apparatus. excellent automation and excellent production efficiency are characteristics of this pelletizing downstream equipment.

Product Fearures of Twin Screw Extruder PVC Pelletizing Machine

Features of PVC pelletizing production line:

High tool steel 38 CrMoALA or W6Mo5Cr4V2 is used to make the screw. The temperature differential in D regions is reduced thanks to a unique screw combination Euro-style rectangle barrel, reflux refrigeration channel optimization, and disposal.
High heat transmission efficiency and long heater life are guaranteed by the innovative design of the heater-tightened style.
High-quality nitride steel that is corrosion-proof or antifriction is employed, together with two specially constructed vacuum sets for processing.

In order to ensure high torque, high precision, and low noise, the key bearings are imported soakage and spraying lubrication, which integrate smoothly techniques and strengthen the tooth face. The new-style parallel three-axis driving project makes the convex axis, convey chain, decelerate, and torque come together, keeping it compact.
Dainty materials, such as super intention alloy, cementiteing steel, cementiting, and grinding, are chosen for drive components.

Working Flow of Twin Screw Extruder PVC Pelletizing Machine

Working Flow of PVC pelletizer production line:

Screw feeder → Efficient extruder → Non-stop hydraulic screen filter changer →  Cutting → Blower → Storage hopper → Electric control panel

1. Screw feeder: this is the initial stage of the pelletizing recycling machine. PVC plastic flakes and scraps are transported into the hopper via a screw; the screw connect sensor detects the material in the hopper; the screw stops when the hopper is full of flakes, and it starts up again when it is empty.
2. Extruder: A customized single screw extruder is used to melt the pre-compacted material before plasticization and degassing. The first stage extruder will thoroughly melt and plasticize the plastic scraps before the second stage extruder extrudes the plastic. Low molecular and moisture volatiles can be effectively eliminated with a double-zone vacuum degassing device, which is particularly useful for heavy printed film and materials that include some water.

3. Non-stop hydraulic screen filter changer: To lessen the frequency of replacing filtering sieves, two stages of filtering are used: fore filtering in the first extruder and fine filtering in the second extruder. Both the intended use of granules and the quality of the input material have a significant impact on the filter technology requirements.
4. Cutting pelletizing: provided with cutting blades made of robust alloy steel and speed steel for dependable performance. A small construction requires less upkeep.

Product Application of Twin Screw Extruder PVC Pelletizing Machine

Advantage of PVC pelletizer production line:

• Extremely low demand for labor.

• Automatic regulation of a steady temperature.

• SGS, ISO9001, and CE certifications.

• Reduced energy use, increased production, and stable operation.

• Configuration should be based on the client's needs and the content, and suggestions should be reasonable.

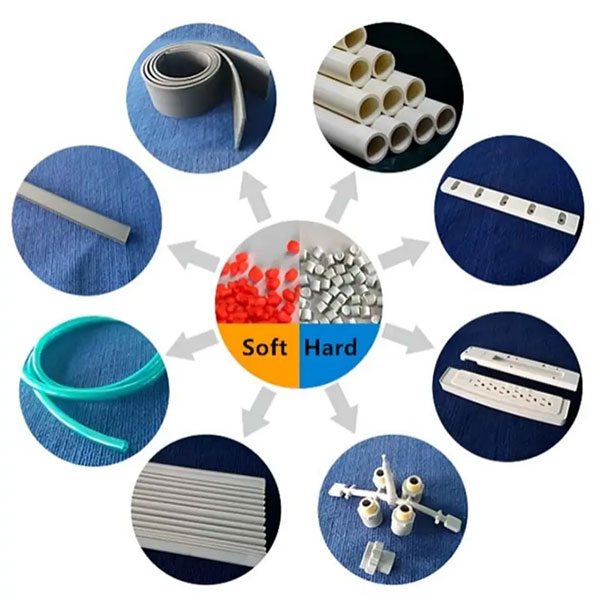

The following industries can use PVC pellets:

• Electric wire and cable

• Shrink film, sheet, and film

• Sandals and shoe soles

• Soft and flexible pellets for hoses or profiles

• Pellets that are rigid for hoses or profiles

• Bottle
