Origin: China
Certifications: ISO, CE, UL, TUV
Electrical Components: Siemens, Schneider, Omron, Celduc, ABB, etc.
Mechanical Parts: Fully manufactured by Jwell, ensuring strict quality control.
1. Premium Quality
2. High Production Capacity
3. Global After-Sales Support (300 Engineers)
4. Over 30 Years of Manufacturing Experience
5. Fully Self-Manufactured Mechanical Parts for Enhanced Quality Control

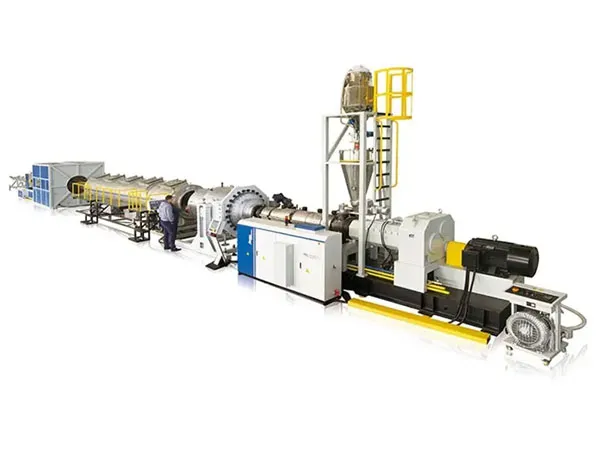

This UPVC CPVC Water Supply & Drainage Plastic Pipe Extrusion Line is designed to produce high-quality pipes for various applications, including water supply, drainage, and industrial use. It features advanced technology and robust components to ensure stable and efficient operation, meeting the needs of high-demand production environments.
Advanced Control System: The Siemens computer control system integrates and ensures closed-loop control across the entire production line. It enables easy analysis (including energy consumption display), remote diagnostics (for quick after-sales service), and equipment maintenance reminders. Advanced weight control technology minimizes material waste and keeps pipe wall thickness within narrow tolerances.
High-Quality Extrusion: The line utilizes a BM barrier kneading screw combined with a spiral slotted feeder. With a 38:1 length-to-diameter ratio, it ensures high yield and superior pipe quality. The hard alloy-coated screw and double metal barrel are built for long-term reliability, even under high-efficiency conditions.
Efficient Energy Consumption: The high-torque precision reducer and AC frequency conversion or permanent magnet servo motor provide stability and energy efficiency during continuous, high-output production.
Optimized Mold Design: High-speed molds, discs, or wet-type sleeves are used to maintain product quality while enabling rapid production speeds.
Vacuum Control for Stability: The unique inverter vacuum automatic control system ensures consistent product size, reduces noise, and enhances energy efficiency.
Precise Traction: The servo motor-equipped tractor guarantees precise synchronous operation and a wide traction range. The digital communication interface with the extruder ensures smooth operation.
Cutting Precision: The cutting unit features a stable, high-performance flying knife for small-diameter pipes, and a dust-free, double-knife cutter for larger diameters.
Model Type | Pipe Specification (mm) | Extruder | Motor Power (kw) | Output (kg/h) |
JWG-PVC63 | Ø16–Ø63 | SJZ65/132 | 37 | 250–300 |
JWG-PVC110 | Ø20–Ø110 | SJZ65/132 | 37 | 250–300 |
JWG-PVC160 | Ø50–Ø160 | SJZ65/132 | 37 | 250–350 |
JWG-PVC250 | Ø75–Ø250 | SJZ80/156 | 55 | 300–450 |
JWG-PVC400 | Ø200–Ø400 | SJZ80/173 | 75 | 450–600 |
JWG-PVC500 | Ø250–Ø500 | SJZ80/173 | 75 | 450–600 |
JWG-PVC630 | Ø315–Ø630 | SJZ92/188 | 110 | 650–750 |
JWG-PVC800 | Ø400–Ø800 | SJZ95/192 or SJP135/31 | 132 | 850–1200 |
JWG-PVC1000 | Ø630–Ø1000 | SJZ110/220 or SJP135/31 | 160 | 1200–1400 |
JWG-PVC1200 | Ø800–Ø1200 | SJZ110/220 or SJP135/31 | 160 | 1200–1400 |
This extrusion line is ideal for producing pipes used in:
Water Supply Systems: Both indoor and municipal water pipes.
Irrigation Systems: Water-saving irrigation pipes.
Building Piping Engineering: For various construction applications.
Chemical and Industrial Uses: Acid and alkali-resistant pipes, used in chemical plants for infusion and transport.
Well Sinking and Pharmaceutical Piping: For specialized applications in medical and mining sectors.
Electrical Conduit: For the protection and routing of telecommunication and electrical cables.
UPVC plastic pipes are widely recognized for their corrosion resistance, making them suitable for a variety of industries requiring durable, reliable piping solutions.
