Origin: China
Certification: ISO, CE, UL, TUV
Electrical Component: Siemens, Schneider, Omron, Celduc, Abb Etc.
Mechanical Part: Quality Controlled, All Made By Jwell
High Quality
Large Capacity
Global After-Sales Support (300 Engineers)
Over 30 Years of Manufacturing Experience
The equipment's mechanical component is entirely self-made, and its quality is controllable.

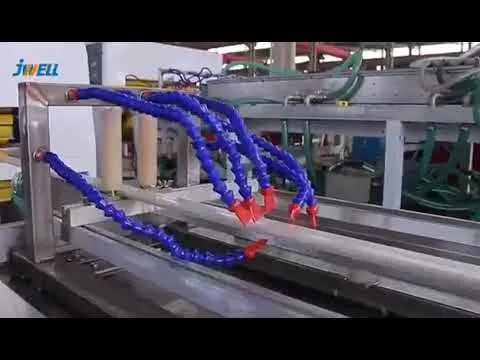

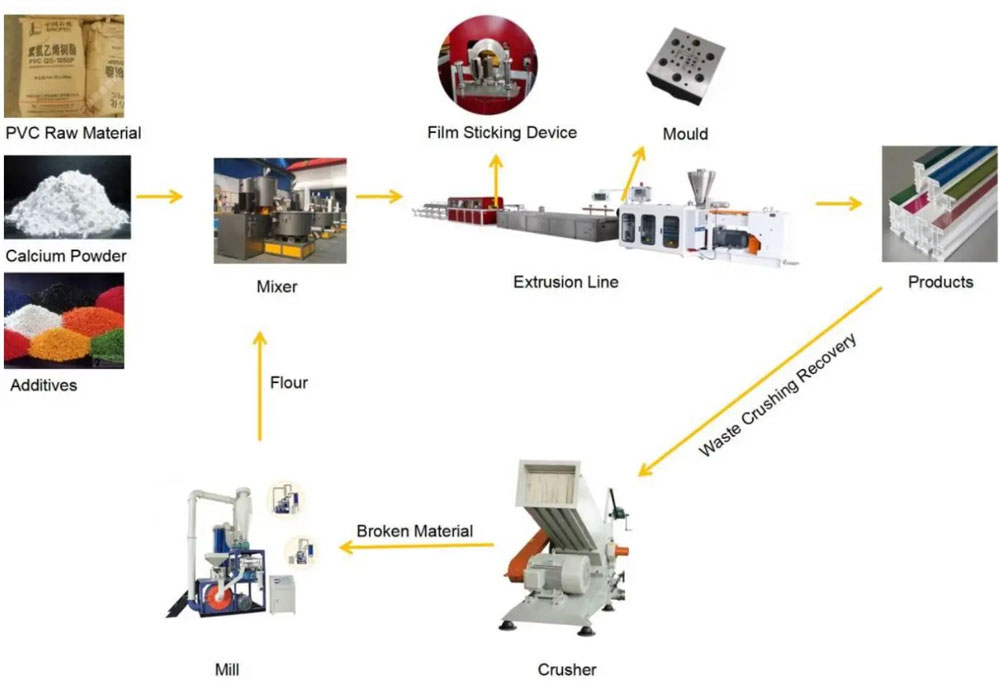

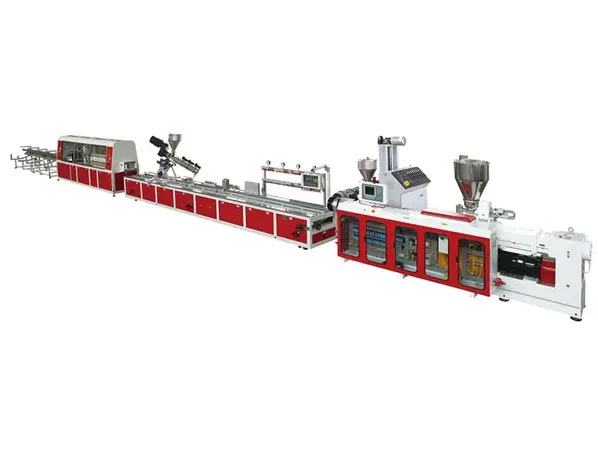

Stable plasticization, high output, low sheering force, extended life service, and other benefits are features of this line. A control system, a conical or parallel twin screw extruder, an extrusion mold, a calibration device, a haul off unit, a film covering machine, and a stacker make up the manufacturing line.
The extruder has an imported temperature controller and an AC variable frequency or DC speed drive. The haul off unit's reducer and the calibration unit's pump are well-known brands. It may also create foam profiles after merely switching out the mold, screw, and barrel; the results may be superior to those of a single screw extruder.
Type | YF240 | YF240 | YF240A |
Max width(mm) | 240 | 240 | 150*2 |
Extruder model | SJP75/28 | SJP93/30 | SJP110/28 |
Max capacity(kg/h) | 150-250 | 250-400 | 400-500 |
Extruder power(kw) | 45 | 55 | 90 |
Cooling water(m3/h) | 7 | 8 | 10 |
Type | YF108 | YF240 | YF240A | YF300 | YF400 |
Max width(mm) | 108 | 240 | 150*2 | 300 | 400 |
Extruder model | SJZ55/110 | SJZ65/132 | SJZ65/132 | SJZ65/132 | SJZ80/156 |
Max capacity(kg/h) | 150 | 250 | 250 | 250 | 450 |
Extruder power(kw) | 22 | 37 | 37 | 37 | 55 |
Cooling water(m3/h) | 7 | 8 | 8 | 8 | 10 |

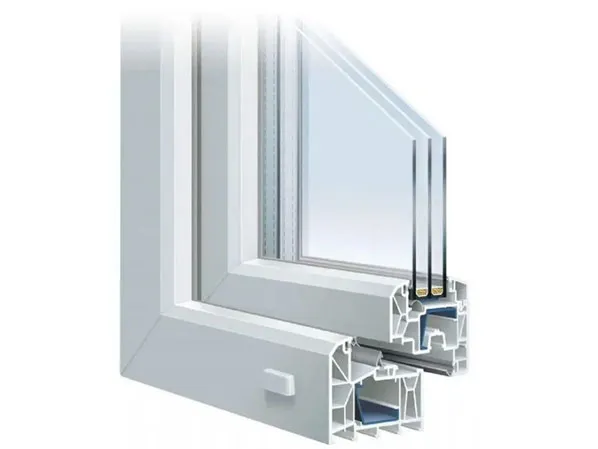

Extrusion lines for PVC window profiles have several uses, particularly in the construction of ornamental materials.
1. Durable
In addition to providing earthquake resistance, reinforced steel is added to the profiles of plastic doors and windows to prevent wind erosion. Its special design makes it difficult for water to penetrate the reinforced steel cavity, considerably extending the life of windows and doors. Additionally, plastic door and window profiles have excellent physical qualities, such as stiffness and corrosion resistance.
2. Sound insulation
Since most people today live in cities with noise issues, sound insulation is a crucial consideration when choosing doors and windows. Nonetheless, the plastic door and window profiles' multi-cavity structure effectively reduces noise. Perfect for people who want a peaceful residential setting or for residences in the downtown area.
3. Weather tolerance
Plastic door and window profiles' multi-cavity construction offers excellent thermal insulation efficiency, a low heat transfer coefficient, and significant social and economic advantages. Additionally, plastic steel door and window profiles can withstand extremely low and high temperatures for extended periods of time. The aging of plastic steel door and window profiles is a difficult issue to solve due to exposure to the intense sun and the humid environment. Typical plastic steel windows and doors have a service life of over 50 years.
