PE/PP Wood Plastics (WPC) is a new type of eco-friendly material created by specially processing and treating polyvinyl chloride resins and polyolefin plastics (such as straw, cotton stalks, wood powder, rice bran) with a PP/PE wood decking profile machine. This material boasts numerous advantages, including resistance to rot, deformation, fading, pests, and fire, and it doesn't crack. It can be sawed, planed, and is easy to maintain.
Not only does it possess the characteristics of natural wood, but it also offers a variety of color options as provided by WPC profile extrusion line manufacturers. The WPC decking profile extrusion and production line is widely used in the construction of railings, trails, steps, outdoor tables and chairs, flower stands, and trellises. It can also be used for indoor door panels, moldings, kitchen cabinets, trays, and other applications.
Model | SJ65 | SJ72 | SJ80 |
Extruder model | SJZ65/132 | SJZ72/152 | SJZ80/156 |
Main moror power(kw) | 37 | 45 | 156 |
Capacity(kg) | 150-180 | 160-250 | 200-350 |

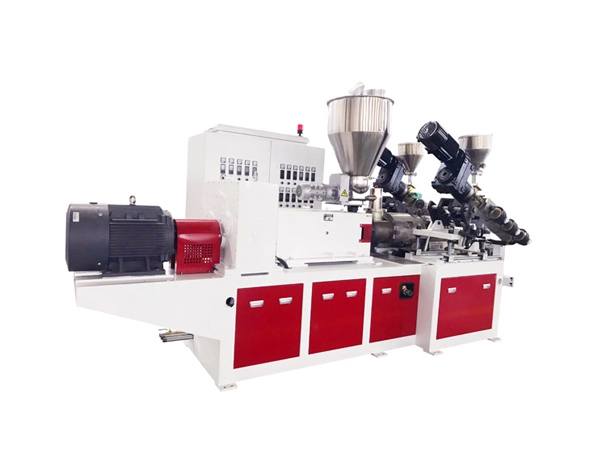

With 20 years of experience in manufacturing extruders, we have independently developed tri-host and penta-host extrusion technologies, resulting in wood-plastic products with superior performance and aesthetics.
The barrel is heated using an aluminum casting ring, cooled by an infrared heating and air cooling system, ensuring rapid and uniform heat transfer.
Depending on the formulation, different screws can be chosen to achieve optimal plasticization.
The replacement box and distribution box feature special bearings, imported oil seals, and gears made from high-quality alloy steel treated with nitriding.
The gearbox and distribution box have a special design that reinforces the thrust bearing, providing high drive torque and a long lifespan.
The vacuum molding table uses a unique vortex current cooling system for efficient cooling. Its special horizontal tilt controls and unique three-position adjustment control make it easy to operate.
The tractor uses unique lift technology, with up and down track back pressure control for smooth operation, high reliability, and large traction. It also features automatic cutting and a dust recovery unit.
The main and auxiliary appliances of the host use imported components to ensure the stability and reliability of the PP/PE wood decking profile machines during long-term continuous operation.
Plastic wood materials are a blend of PE/PP/PVC plastics and wood fibers, created through polymer modification. These materials combine the benefits of both plastic and wood, and are easy to install, often serving as a replacement for traditional plastics and wood.
This outdoor decorative material, produced by a plastic profile extruder, has significant development potential and is adaptable.
It is waterproof, moisture-proof, and corrosion-resistant, making it ideal for humid environments. It does not easily expand and is resistant to outdoor weather conditions.
It offers color customization, replicating the feel and texture of wood while also allowing for different colors and textures as needed.
It has strong plasticity, enabling easy realization of personalized exteriors that can reflect various styles according to design.
It has excellent processing performance, allowing for nailing, planing, sawing, and surface painting.
It is easy to install, requiring no complex construction techniques, thus saving on materials and installation time and costs.
It has low wastage, can be customized, and helps save material.
It is maintenance-free, easy to clean, cost-effective, and offers low overall costs.
PP / PE wood plastic formula is a percentage of 45% to 60% plant fiber, 4% ~ 6% inorganic filler, 25% ~ 35% plastic resin, 2.0% ~ 3.5% lubricant, 0.3 ~ 0.6 % Light stability, 5% ~ 8% plasticizer and 2.0% ~ 6.0% coupling agent.
Wood Flooring refers WPC compounding, devolatilization, extrusion-molded articles were completed at various devices, i.e., after some raw materials are well blended formulation, made into wood particles, and then processed into extruded wood-plastic floor.
Wood plastic product processing technology generally uses a 2-step method, first use parallel twin screw extruded machine, then extruded the finished product with a conical twin-screw extruder.
