Origin: China
Certification: ISO, CE, UL, TUV
Electrical Component: Siemens, Schneider, Omron, Celduc, Abb Etc.
Mechanical Part: Quality Controlled, All Made By Jwell
High Quality
Large Capacity
Global After-Sales Support (300 Engineers)
Over 30 Years of Manufacturing Experience
The equipment's mechanical component is entirely self-made, and its quality is controllable.

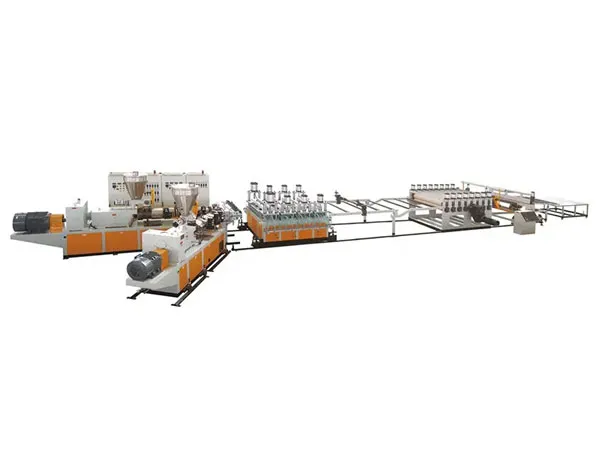

Model | Co-extrusion foamed board extrusion line | Skining foaming board extrusion line |
Product width(mm) | 1220-1560mm | 1220-1560mm |
Product thickness(mm) | 5-20mm/20-35mm | 5-20mm/20-35mm |
Extruder model | SJZ65/132+SJZ80/156 | SJZ80/156 |
Output capacity(kg/h) | 400-550kg/h | 300-450kg/h |
Motor powder | 37kw+75kw | 75kw |
1, The SJZ80/156 high output extruder, which uses a revolutionary seven-stage pineapple head foam screw structure with a 24-hour output break of 10 tons.
2, In order to improve the sheet skin effect, the extrusion flat die head adopts a tiny die lip based on the standard die, and the corresponding die temperature machine is controlled by oil.

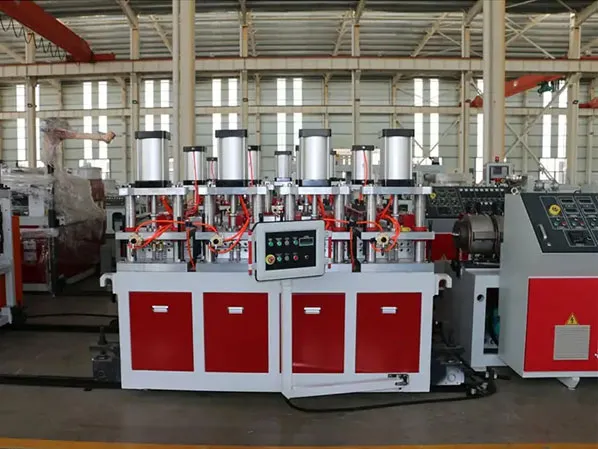

3, The setting table uses four pairs of setting plate structures, and cylinders are used to drive the opening and shutting of the table in order to guarantee its stability. In order to guarantee both the rigidity of the setting plate and the crust effect of the plastic sheet cooling, the setting plate is made of special mold steel that is thick enough.
4, The traction machine uses eight pairs of rubber rollers to provide both the stability of traction and the traction needed to produce thick plates. It also has a Danfoss inverter control, a reducer box, and a FALK motor.
5, A photoelectric switch controls the transverse cutting machine, while a pinion and rack regulate the longitudinal follower to guarantee plate precision. To enable high-yield, continuous, long-term steady operation of the equipment, the primary motor inverter uses the ABB brand, the contactor uses the Siemens brand, and other premium electrical components.

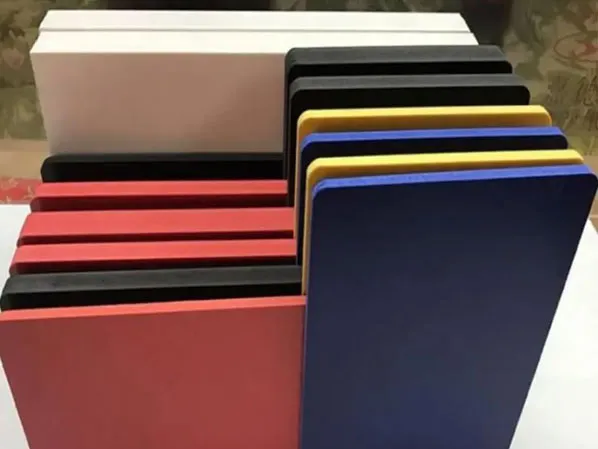

PVC foam board has several potential uses in the building, billboard, furniture, and transportation industries due to its light weight, great weather resistance, excellent heat insulation, and affordability.

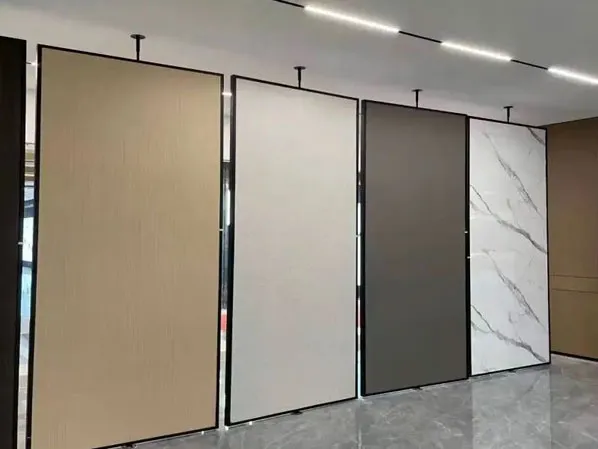

1. Construction industry: PVC foam board can be used for outside building materials like roof waterproofing and external wall insulation, as well as interior decorations like walls, ceilings, and partitions. It has several potential applications in the building industry due to its strength and light weight.
2. Billboard field: PVC foam board can be formed into a variety of billboard forms and has good flexibility and printability. It is also the perfect material for outdoor billboards due to its color stability and resistance to weather.
3. The furniture industry: PVC foam board can be used to create a wide range of furniture, including tables, chairs, cabinets, and more. Because of its small weight and ease of processing, it may find use in the furniture industry.
4. Transportation: Vehicles like cars, trains, and ships can be decorated both inside and out with PVC foam board.
